One Piece Crimp Fitting
30542one piece fittings are 45°elbow metric female 24°cone with o-ring for one, two or four braided hydraulic hoses which are heavy types. Different types of one piece fittings are involved in our production daily. Many thread types and sizes can be your choose. And please visit our website or download catalog for detailed data.
Click here to send e-mail!
-
Part no.: 30542one piece(45°Metric Female 24°Cone H.T. With O-ring Four-Wire Integral Fitting)
Types: 30542 fittings with related ferrules crimped
Sizes: sizes showed on technical data table are standard ones in YH Hydraulic
Samples: less than 3pcs is free of charge for checking the quality
Delivery time: Less than 7 days for stock products
Stock condition: a wide variety of fittings are kept in our stock
-

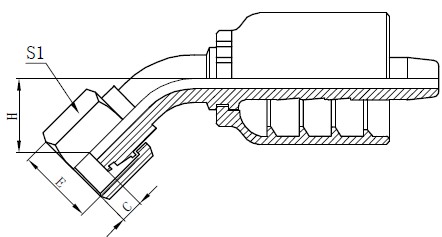

Drawing
Technical Data Table
代号
PART NO.
螺纹E
THREAD E
胶管 HOSE BORE
管子外径
TUBE O.D.
尺 寸 DIMENSIONS
公称内径DN
标 号 DASH
C
S1
H
30542-24-08one piece
M24X1.5
12
08
16
3
30
27
30542-30-10one piece
M30X2
16
10
20
3.5
36
31
30542-36-12one piece
M36X2
20
12
25
3
41
34
30542-42-16one piece
M42X2
25
16
30
5
50
42
30542-52-20one piece
M52X2
32
20
38
6.5
60
43
30542-52-24one piece
M52X2
40
24
38
6.5
60
45
