90 Degrees Integral Fitting
87691one piece fittings are 90 degrees SAE flange 6000PSI for one or two wire braided hydraulic hoses such as R1AT, R2AT, 1SN, 2SN, etc. YH Hydraulic is professional in flange fittings production which including 3000PSI, 6000PSI and 9000PSI. Elbow flange fittings and long drop types are all involved in our daily work.
Click here to send e-mail!
-
Part no.: 87691one piece(90°SAE Flange 6000PSI For One Or Two Wire Integral Fitting)
Material: 45 carbon steel for flange fittings; mild steel for related sleeves
Samples: need days to crimp fittings with sleeves; less than 3pcs is free of charge
Usage: high quality in hydraulic field; mining equipments; other machines; trucks
Delivery time: within 25 days for one order(big or small)
OEM service: available if drawings or samples provided
-

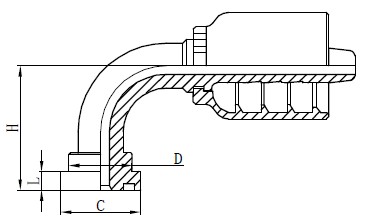

Drawing
Technical Data Table
代号
PART NO.
法兰尺寸
FLANGE SIZE
胶管 HOSE BORE
尺 寸 DIMENSIONS
公称内径DN
标 号 DASH
C
D
L
H
87691-08-08one piece
1/2"
12
08
31.8
23.9
7.9
49
87691-12-12one piece
3/4"
20
12
41.3
31.7
8.9
63.9
87691-16-16one piece
1"
25
16
47.6
38
9.6
76
87691-20-20one piece
1.1/4"
32
20
54
43.6
10.4
87.9
87691-24-24one piece
1.1/2"
40
24
63.5
50.8
12.7
103
87691-32-32one piece
2"
50
32
79.4
66.5
12.7
124
