BSP Multiseal Integral Fitting
22111one piece is BSP female multiseal integral fitting. Complete sizes from 04 to 24 are involved in YH daily production. One item of 22111 one piece includes 22111 fitting and related ferrules crimped together. It can be used to make hose assembly directly. One piece fittings come in material of mild steel, stainless steel, brass, aluminum, etc.
Click here to send e-mail!
-
Part no.: 22111one piece(BSP Female Multiseal Integral Fitting)
Processing tool: raw material cutting machine; CNC processing machine; crimping machine
MOQ: 300PCS one item
Sample: less than 3 pieces are free according to stock condition
Surface: high degree of smooth surface
Coating: Zinc-plated; Chrome-plated; Spray painting
-

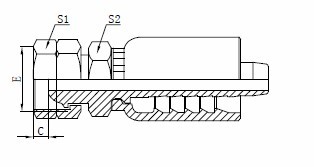

Drawing
Technical Data
代号
PART NO.
螺纹E
THREAD E
胶管 HOSE BORE
尺 寸 DIMENSIONS
公称内径DN
标 号 DASH
C
S1
S2
22111-04-04one piece
G1/4"X19
6
04
4
17
17
22111-06-06one piece
G3/8"X19
10
06
4
22
19
22111-08-08one piece
G1/2"X14
12
08
4.5
27
22
22111-10-10one piece
G5/8"X14
16
10
4
27
27
22111-12-10one piece
G3/4"X14
16
10
5.5
32
27
22111-12-12one piece
G3/4"X14
20
12
5.5
32
32
22111-16-16one piece
G1"X11
25
16
7
38
38
22111-20-20one piece
G1.1/4"X11
32
20
6
50
50
22111-24-24one piece
G1.1/2"X11
40
24
6
55
55
