Hydraulic Female Hose Fitting
22611 instead of BSP female 60 degrees cone are for one steel wire braided hydraulic hoses to make hose assemblies after crimped with related size of ferrules. 22611 series fittings are produced in YH factory largely because of its good selling. Hydraulic fittings are manufactured to Winner as well as Eaton standard.
Click here to send e-mail!
-
Part no.: 22611(BSP Female 60 Degrees Cone)
Related products: 22612(also for spiral hose); 22691(90 degrees elbow); 22641(45 degrees elbow)
MOQ: 300PCS one item for re-produced items
Usage: used for high pressure hoses to make hose assemblies
Advantage: Smooth surface finish; Good material quality; Precisely manufactured.
-

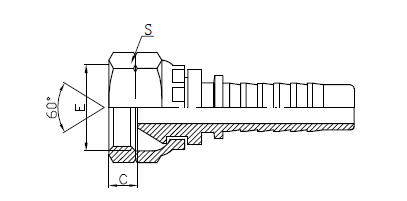

Drawing
Technical Data Table
代号
PART NO.
螺纹E
THREAD E
胶管 HOSE BORE
尺 寸 DIMENSIONS
公称内径DN
标 号 DASH
C
S
22611-04-04
G1/4"X19
6
04
5.5
19
22611-06-06
G3/8"X19
10
06
6.5
22
22611-08-08
G1/2"X14
12
08
8
27
22611-10-10
G5/8"X14
16
10
10.5
30
22611-12-12
G3/4"X14
20
12
11.5
32
22611-16-16
G1"X11
25
16
11.5
41
22611-20-20
G1.1/4"X11
32
20
12
50
22611-24-24
G1.1/2"X11
40
24
13
55
22611-32-32
G2"X11
50
32
16
70
