45 Degrees BSP Female
22641 are popular fitting types manufactured in YH factory and accepted around the world. 22641 fittings are with 45°BSP female 30°cone thread type. We offer complete sizes to meet most machine connection demands. We not only provide quality products with reasonable prices, but also nice service. Please feel no hesitate to advise us with any comments or suggestions.
Click here to send e-mail!
-
Part no.: 22641(45°BSP Female 60°Cone)
Related items: 22642(fittings for one, two or four wire hoses); 22611(straight type); 22691(90 degrees elbow)
Stock condition: we have kept most items as stock products so that it can shorten delivery time
Samples: available for less than 5pcs
Delivery time: less than 5 days for stock items; less than a month for an order big or small.
Delivery port: Ningbo; Shanghai; Guangzhou
-

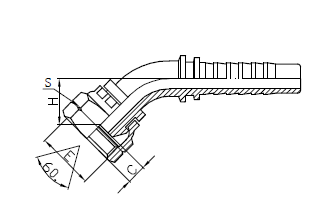

Drawing
Technical Data Table
代号
PART NO.
螺纹E
THREAD E
胶管 HOSE BORE
尺 寸 DIMENSIONS
公称内径DN
标 号 DASH
C
S
H
22641-04-04
G1/4"X19
6
04
5.5
19
20.2
22641-06-05
G3/8"X19
8
05
6.5
22
22
22641-06-06
G3/8"X19
10
06
6.5
22
22.6
22641-08-08
G1/2"X14
12
08
8
27
26.1
22641-10-10
G5/8"X14
16
10
10.5
30
27.8
22641-12-12
G3/4"X14
20
12
11.5
32
31.8
22641-16-16
G1"X11
25
16
11.5
41
34.2
22641-20-20
G1.1/4"X11
32
20
12
50
40
22641-24-24
G1.1/2"X11
40
24
13
55
44.8
22641-32-32
G2"X11
50
32
16
70
52.7
