BSP Interlock Fitting
22613 series are BSPT female 60 degrees cone for interlock which have much higher pressure resistant. BSP thread fittings are involved in YH production daily. Some BSP fittings are popular selling such as 22611(straight fittings for one or two wire hoses); 22612(straight fittings for one, two, or four wire hoses); 22641(45 degrees elbow fittings for one or two wire hoses); etc
Click here to send e-mail!
-
Part no.: 22613(BSP Female 60 Degrees Cone For Interlock)
MOQ: require 200pcs for each item; if order quantity is less than it, we will check with stock to meet your demands.
Stock: we have kept a wide range of types and sizes in stock.
Quality control: four times for every product during production
Surface: yellow zinc plated; white zinc plated; chrome plated(Silver)
-

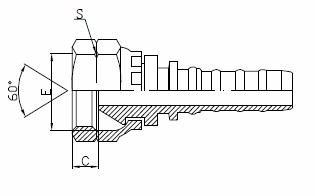

Drawing
Technical Data Table
代号
PART NO.
螺纹E
THREAD E
胶管 HOSE BORE
尺 寸 DIMENSIONS
公称内径DN
标 号 DASH
C
S
22613-08-08
G1/2"X14
12
08
8
27
22613-12-12
G3/4"X14
20
12
11.5
32
22613-16-16
G1"X11
25
16
11.5
41
22613-20-20
G1¼"X11
32
20
12
50
22613-24-24
G1½"X11
40
24
13
55
22613-32-32
G2"X11
50
32
16
70
