BSP Flat Seat Connectors
22211 series fittings are BSP female thread with flat face. We offer a wide range of swivel female flat seat nipple hexagon BSP that is used for connecting various pipes or tubes. These fittings are designed to find application in various petrochemical and other industries. These fittings are highly durable and high pressure handling.
Click here to send e-mail!
-
Part no.: 22211(BSP Female Flat Seat)
Available hoses: 1SN(R1AT); 2SN(R2AT); R16; R17; Pressure wash hoses; R7; R8; Lower pressure R3 hose
Available ferrules: ferrules for one or two steel wire braided hoses(00110; 00210;00100;00200 YH part no)
Type: available for crimped or non-crimped with ferrules
Delivery time: Less than 20 days; support for FOB(Ningbo) or CIF(customer’s port)
Color: White(zinc-plated); Yellow(zinc-plated); Silver(Chrome plated)
-

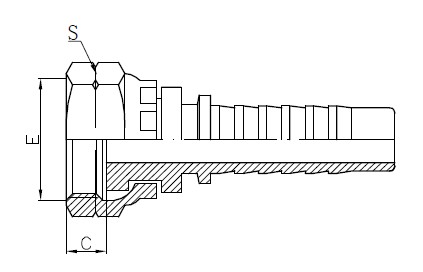

Drawing
Technical Data Table
代号
PART NO.
螺纹E
THREAD E
胶管 HOSE BORE
尺 寸 DIMENSIONS
公称内径DN
标 号 DASH
C
S
22211-04-04
G1/4"X19
6
04
8
19
22211-06-06
G3/8"X19
10
06
8.5
22
22211-08-08
G1/2"X14
12
08
10.5
27
22211-10-10
G5/8"X14
16
10
13
30
22211-12-12
G3/4"X14
20
12
14
32
22211-16-16
G1"X11
25
16
14.5
41
22211-20-20
G1.1/4"X11
32
20
16
50
22211-24-24
G1.1/2"X11
40
24
18
55
22211-32-32
G2"X11
50
32
24
70
