BSPT Male Fittings
13011 series fittings are BSPT male thread. The British BSP connections includes two types o f threads, BSPP which are straight(or parallel) and BSPT which are tapered. The BSPT tapered male will mate with a BSPT tapered female(usually a port) and seals on the threads. The BSPP parallel male has a 30 degrees chamfered seat which seals with a BSPP swivel female on its 30 degrees cone seat.
Click here to send e-mail!
-
Part no.: 13011(BSPT Male)
Threads involved: Metric, JIS metric, BSP, BSPT, JIC, NPT, ORFS, etc.
Main fittings: metric fittings, American thread fittings, British thread fittings, elbow fittings; flange fittings; integral fittings
MOQ: 500pcs for re-produced items(04-08); 300pcs for re-produced items(10-32)
Samples: less than 5pcs is free of charge for free.
Note: you can download our brochure from the above click.
-

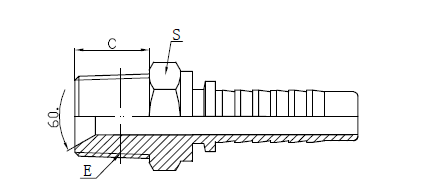

Drawing
Technical Data Table
代号
PART NO.
螺纹E
THREAD E
胶管 HOSE BORE
尺 寸 DIMENSIONS
公称内径DN
标 号 DASH
C
S
13011-02-04
R1/8"X28
6
04
10
12
13011-04-04
R1/4"X19
6
04
14
17
13011-06-04
R3/8"X19
6
04
14
19
13011-06-05
R3/8"X19
8
05
14
19
13011-06-06
R3/8"X19
10
06
14
19
13011-08-06
R1/2"X14
10
06
19
22
13011-08-08
R1/2"X14
12
08
19
22
13011-12-12
R3/4"X14
20
12
19.5
30
13011-16-16
R1"X11
25
26
24
36
13011-20-20
R1.1/4"X11
32
20
25
46
13011-24-20
R1.1/2"X11
32
20
25
50
13011-24-24
R1.1/2"X11
40
34
25
50
13011-32-32
R2"X11
50
32
28
65
