BSPP Male Fittings
12611A series fittings are BSP female 60 degrees cone seat with bonded seal types. The British Standard Pipe(BSP) is a family of standard screw thread types that has been adopted internationally for interconnecting and sealing pipe ends by mating an external with an internal thread and has been adopted as a standard scale used in plumbing fittings, except in the American NPT is the standard used.
Click here to send e-mail!
-
Part no.: 12611A(BSP female 60 degrees cone seat with bonded seal)

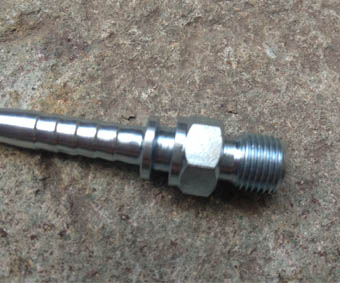

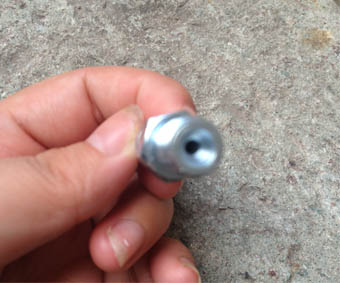

Note: Images showed are only for reference. Please refer to “Technical Data” for exact drawing and sizes with technical data.
Sizes: from 1/8’’ to 2’’ are completely manufactured in YH Hydraulic
Our advantages: smooth surface finish; required tolerance demands; fast delivery
Delivery time: Less than 25 days for one order including items reproduced.Products Details
-

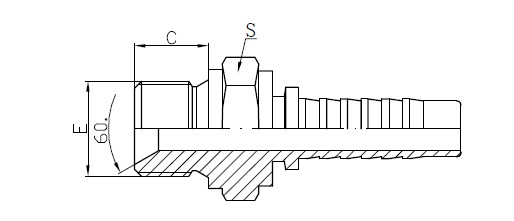

Drawing
Technical Data Table
代号
PART NO.
螺纹E
THREAD E
胶管 HOSE BORE
尺 寸 DIMENSIONS
公称内径DN
标 号 DASH
C
S
12611A-02-02
G1/8"X28
4
02
10
14
12611A-02-04
G1/8"X19
6
04
10
14
12611A-04-04
G1/4"X19
4
04
12
19
12611A-04-06
G1/4"X14
10
06
12
19
12611A-06-04
G3/8"X14
6
04
13.5
22
12611A-06-05
G3/8"X14
8
05
13.5
22
12611A-06-06
G3/8"X14
10
06
13.5
22
12611A-06-08
G3/8"X14
13
08
13.5
22
12611A-08-08
G1/2"X14
13
08
16
27
12611A-08-06
G1/2"X14
10
06
16
27
12611A-10-10
G5/8"X14
16
10
17.5
30
12611A-12-12
G3/4"X14
20
12
18.5
32
12611A-16-16
G1"X11
25
16
20.5
41
12611A-20-20
G1.1/4"X11
32
20
20.5
50
12611A-24-24
G1.1/2"X11
40
24
23
55
12611A-32-32
G2"X11
50
32
25.5
70
