Double Hexagon Fitting
22611D fittings are BSP female 60 degrees cone with double hexagon. 22611D fittings are special for higher pressure hydraulic hoses demands. 22611D fittings are manufactured with sizes from 1/4’’ to 2’’ which can meet most requirements of machines connection. 22611D fittings are coated with zinc plated, chrome plated and nickel plated.
Click here to send e-mail!
-
Part no.: 22611D(BSP Female 60°Cone With Double Hexagon)
Related items: 22611(single hexagon); 22612D(double hexagon for spiral hose); others please refer to our catalog.
Color options: white, yellow, silver, colorful
Materials: 45 carbon steel, 20 carbon steel, stainless steels
Delivery time: less than 20 days for this item; less than 5 days for stock products.
-

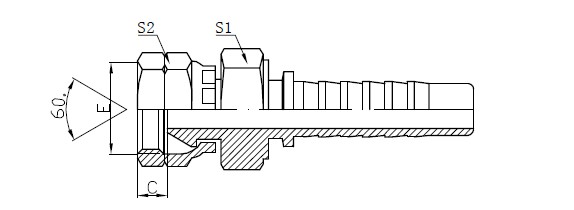

Drawing
Technical Data Table
代号
PART NO.
螺纹E
THREAD E
胶管
HOSE BORE
尺 寸
DIMENSIONS
公称内径DN
标 号 DASH
C
S1
S2
22611D-04-04
G1/4"X19
6
04
5.5
19
19
22611D-06-06
G3/8"X19
10
06
6.5
22
22
22611D-08-08
G1/2"X14
12
08
8
27
27
22611D-12-12
G3/4"X14
20
12
11.5
32
32
22611D-16-16
G1"X11
25
16
11.5
41
41
22611D-20-20
G1 1/4"X11
32
20
12
50
50
22611D-24-24
G1 1/2"X11
40
24
13
55
55
22611D-32-32
G2"X11
50
32
16
70
70
