Butt-weld Tube Connectors
Click here to send e-mail!
-
Part no.: 2WB(Butt-weld tube with BSP female 60 degrees cone)
Threads: BSP; metric; JIS; BSP; BSPT; ORFS; NPT; JIC; others
Standard: Winner production standard.
Logo: YH; customer’s logo acceptable.
Material: Mild steel; 45 carbon steel; stainless steel; brass; or to customers’ requirements.
Delivery time: reproduced items need 20 days no matter big quantity or small.
-

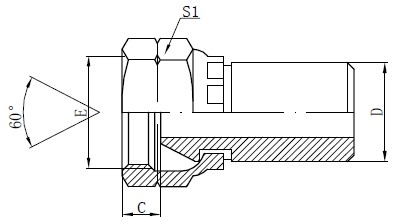

Drawing
Technical Data Table
代号
PART NO.
螺纹
管子外径
尺寸 DIMENSIONS
THREAD E
TUBE O.D. D
C
S1
2WB-10-04
G1/4"X19
10
5.5
19
2WB-14-06
G3/8"X19
14
6.5
22
2WB-18-08
G1/2"X14
18
8
27
2WB-22-08
G1/2"X14
22
8
27
2WB-22-12
G3/4"X14
22
11.5
32
2WB-28-16
G1"X11
28
11.5
41
2WB-34-20
G1.1/4"X11
34
12
50
2WB-42-20
G1.1/4"X11
42
12
50
2WB-50-24
G1.1/2"X11
50
13
55
