BSP Hydraulic Tee
BB instead of BSP male 60 degrees seat with BSP female 60 degrees cone branch tee threads is a popular series among customers. YH is providing complete sizes of BB series which are showed on technical table data. YH can also produce other items with different threads such NPT, BSPT, metric, ORFS, JIC, etc. Our products are coated with zinc or chrome mostly before delivery.
Click here to send e-mail!
-
Part no.: BB(BSP Male 60 Degrees Seat with BSP Female 60 Degrees Cone Branch Tee)
Good color and luster. All the adapter tees are cleaned without burr and impurities
Our advantage: High precision; competitive prices; good material controlled
Shipping term: FOB(Ningbo) and CIF(Customer’ port) are commonly accepted
MOQ: 300PCS for re-produced items
-

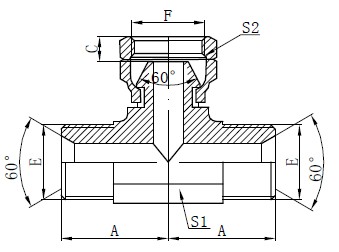

Drawing
Technical Data Table
代号
PART NO.
螺纹THREAD
尺寸 DIMENSIONS
E
F
A
C
S1
S2
BB-02
G1/8"X28
G1/8"X28
19.8
5.5
11
14
BB-04
G1/4"X19
G1/4"X19
25
5.5
14
19
BB-06
G3/8"X19
G3/8"X19
26
6.5
17
22
BB-08
G1/2"X14
G1/2"X14
30
8
22
27
BB-12
G3/4"X14
G3/4"X14
40
11.5
27
32
BB-16
G1"X11
G1"X11
43
11.5
33
41
BB-20
G1.1/4"X11
G1.1/4"X11
59
12
44
50
