British Adapters
Your current location : Home » Products » Hydraulic Adapters » British Adapters » BSP Male Adapter Fittings

Click here to send e-mail!

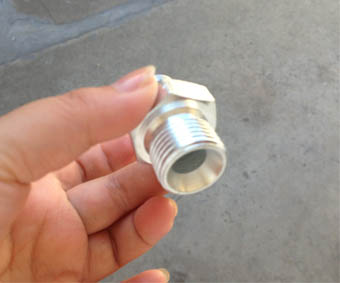

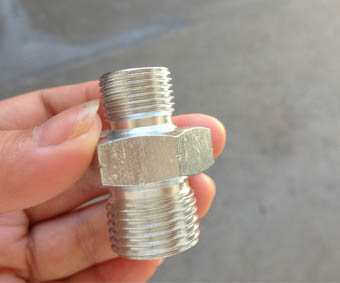

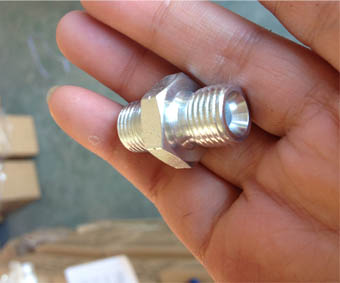

  • Part no.: 1B(BSP Male 60 Degrees Seat Bonded Seal)


    Type: Straight(1B); 45 degrees Elbow(1B4); 90 degrees(1B9)


    Color: White; Yellow; Silver


    Sizes: showed on technical data table are popular items; others if specifications provided are available.

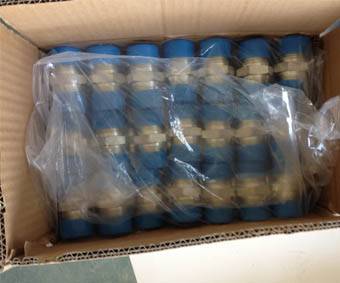

    Stock: most items are kept as stock products for quick delivery time.



    Products details

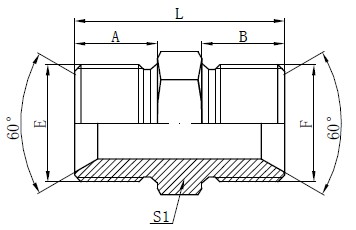

  • Drawing



    Technical Data Table

    代号

    PART NO.

    螺纹THREAD

    尺寸 DIMENSIONS

     E

     F

    A

    B

    S1

    L

    1B-02

    G1/8"X28

    G1/8"X28

    10

    10

    14

    26

    1B-02-04

    G1/8"X28

    G1/4"X19

    10

    12

    19

    28

    1B-02-06

    G1/8"X28

    G3/8"X19

    10

    13.5

    22

    31.5

    1B-02-08

    G1/8"X28

    G1/2"X14

    10

    16

    27

    34

    1B-04

    G1/4"X19

    G1/4"X19

    12

    12

    19

    30

    1B-04-06

    G1/4"X19

    G3/8"X19

    12

    13.5

    22

    33

    1B-04-08

    G1/4"X19

    G1/2"X14

    12

    16

    27

    36

    1B-04-10

    G1/4"X19

    G5/8"X14

    12

    17.5

    30

    38.5

    1B-06

    G3/8"X19

    G3/8"X19

    13.5

    13.5

    22

    35

    1B-06-08

    G3/8"X19

    G1/2"X14

    13.5

    16

    27

    37.5

    1B-06-10

    G3/8"X19

    G5/8"X14

    13.5

    17.5

    30

    40

    1B-06-12

    G3/8"X19

    G3/4"X14

    13.5

    18.5

    32

    42

    1B-08

    G1/2"X14

    G1/2"X14

    16

    16

    27

    40

    1B-08-10

    G1/2"X14

    G5/8"X14

    16

    17.5

    30

    42.5

    1B-08-12

    G1/2"X14

    G3/4"X14

    16

    18.5

    32

    44

    1B-10

    G5/8"X14

    G5/8"X14

    17.5

    17.5

    30

    44

    1B-10-12

    G5/8"X14

    G3/4"X14

    17.5

    18.5

    32

    46

    1B-10-16

    G5/8"X14

    G1"X11

    17.5

    20.5

    41

    50

    1B-12

    G3/4"X14

    G3/4"X14

    18.5

    18.5

    32

    47

    1B-12-16

    G3/4"X14

    G1"X11

    18.5

    20.5

    41

    49

    1B-12-20

    G3/4"X14

    G1.1/4"X11

    18.5

    20.5

    50

    56

    1B-16

    G1"X11

    G1"X11

    20.5

    20.5

    41

    53

    1B-16-20

    G1"X11

    G1.1/4"X11

    20.5

    20.5

    50

    57

    1B-16-24

    G1"X11

    G1.1/2"X11

    20.5

    23

    55

    60

    1B-20

    G1.1/4"X11

    G1.1/4"X11

    20.5

    20.5

    50

    58

    1B-20-24

    G1.1/4"X11

    G1.1/2"X11

    20.5

    23

    55

    61

    1B-24

    G1.1/2"X11

    G1.1/2"X11

    23

    23

    55

    63

    1B-24-32

    G1.1/2"X11

    G2"X11

    23

    25.5

    70

    66

    1B-32

    G2"X11

    G2"X11

    25.5

    25.5

    70

    69
