BSPT Male Connector
1T4 adapter fittings are 45°BSPT male types. Sizes from 02 to 32 are commonly manufactured in our factory. 1T4 adapter fittings are coming in material of mild steel which is also known as 20 carbon steel. 1T4 adapter fittings are forged types and finished by CNC machines so that high precision and required tolerance are controlled.
Click here to send e-mail!
-
Part no.: 1T4(45°BSPT Male)
Place of Origin: Zhejiang, China(Mainland)
Material: 45 Carbon steel; Mild steel; Stainless steel
Package details: Nylon plastic + corrugated carton + multiple plywood case
Delivery time: less than 7 days for stock products; less than 40 days for one order no matter small or big
Delivery port: Ningbo(nearest one); Shanghai; Guangzhou; etc.
-

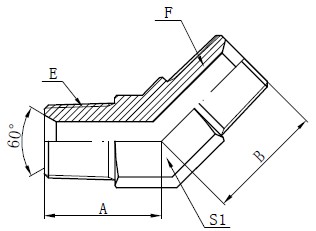

Drawing
Technical Data Table
代号
PART NO.
螺纹THREAD
尺寸 DIMENSIONS
E
F
A
B
S1
1T4-02
ZG1/8"X28
ZG1/8"X28
19
21
11
1T4-04
ZG1/4"X19
ZG1/4"X19
22
27
14
1T4-06
ZG3/8"X19
ZG3/8"X19
22
29
17
1T4-08
ZG1/2"X14
ZG1/2"X14
27
37
22
1T4-12
ZG3/4"X14
ZG3/4"X14
33
43
27
1T4-16
ZG1"X11
ZG1"X11
37
47
33
1T4-20
ZG1.1/4"X11
ZG1.1/4"X11
40
56
44
1T4-24
ZG1.1/2"X11
ZG1.1/2"X11
47
57
50
1T4-32
ZG2"X11
ZG2"X11
55
63
65
