BSP Female Elbow Adapter
3B9 adapter fittings are 90 degrees BSP female 60 degrees cone type. YH Hydraulic offers extensive line of BSP adapter fittings to complete your connection. Fittings are available in brass, malleable iron, forged and stainless steel. A wide selection of this line of adapter fittings is in stock at YH Hydraulic.
Click here to send e-mail!
-
Part no.: 3B9(90°BSP Female 60°Cone)
Sizes: from G1/8’’ to G2’’ are available in our factory
Brand: YH; production standard is Winner same as Eaton
Application: Petroleum, chemical, machinery, electric power, shipbuilding, papermaking, construction, etc.
Testing: a small amount will be put into testing before whole order is delivered.
-

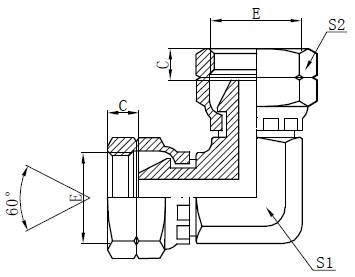

Drawing
Technical Data Table
代号
PART NO.
螺纹 E
尺寸 DIMENSIONS
THREAD E
C
S1
S2
3B9-02
G1/8"X28
5.5
11
14
3B9-04
G1/4"X19
5.5
11
19
3B9-06
G3/8"X19
6.5
17
22
3B9-08
G1/2"X14
8
19
27
3B9-10
G5/8"X14
10.5
22
30
3B9-12
G3/4"X14
11.5
27
32
3B9-16
G1"X11
11.5
33
41
3B9-20
G1.1/4"X11
12
44
50
3B9-24
G1.1/2"X11
13
50
55
3B9-32
G2"X11
16
65
70
