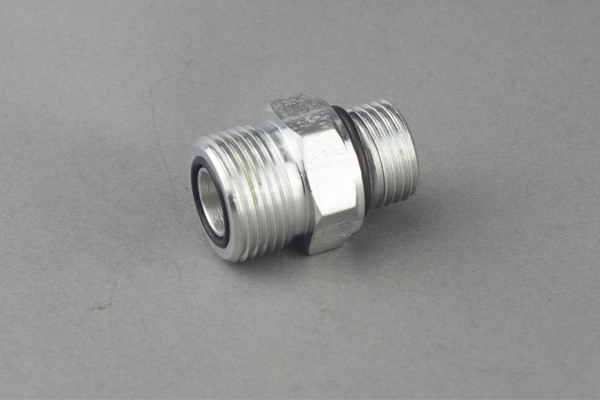

ORFS Male O-ring Adapters
Click here to send e-mail!
-
Part no.: 1F(ORFS Male O-ring)
Material: Steel(Carbon Steel #20;#45); Stainless Steel; Brass
Coating: Galvanized; Chrome-plated(Cr6 is not allowed because of its poisonousness); Nickel-plated
Adapter kinds: Straight; 45 degrees; 90 degrees
Currency: USD; Euro (accepted); others please indicate in enquiry
-

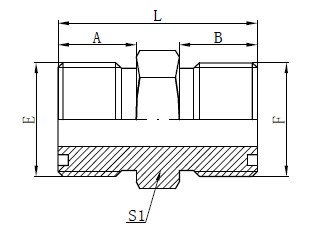

Drawing
Technical Data
代号
PART NO.
螺纹THREAD
尺寸 DIMENSIONS
E
F
A
B
S1
L
1F-04
U9/16"X18
U9/16"X18
12
12
17
30
1F-04-06
U9/16"X18
U11/16"X16
12
14
19
32
1F-04-08
U9/16"X18
U13/16"X16
12
15
22
36
1F-06
U11/16"X16
U11/16"X16
14
14
19
34
1F-06-08
U11/16"X16
U13/16"X16
14
15
22
38
1F-06-10
U11/16"X16
U1"X14
14
16.5
27
39.5
1F-08
U13/16"X16
U13/16"X16
15
15
22
39
1F-08-10
U13/16"X16
U1"X14
15
16.5
27
40.5
1F-08-12
U13/16"X16
U1.3/16"X12
15
17
32
41
1F-10
U1"X14
U1"X14
16.5
16.5
27
42
1F-10-12
U1"X14
U1.3/16"X12
16.5
17
32
42.5
1F-12
U1.3/16"X12
U1.3/16"X12
17
17
32
43
1F-12-16
U1.3/16"X12
U1.7/16"X12
17
18.5
41
47.5
1F-12-20
U1.3/16"X12
U1.11/16"X12
17
19.5
46
50
1F-16
U1.7/16"X12
U1.7/16"X12
18.5
18.5
41
49
1F-16-20
U1.7/16"X12
U1.11/16"X12
18.5
19.5
46
51.6
1F-20
U1.11/16"X12
U1.11/16"X12
19.5
19.5
46
52.6
1F-24
U2"X12
U2"X12
23.5
23.5
55
64.5
