JIC Male Coupling
1J4 is 45 degrees JIC female and male 37 degrees cone thread coupling. YH Hydraulic is manufacturing and marketing complete kinds of pipe fittings, elbow, tee, adapters and other hydraulic pressure fittings. Hose adapters have thousands of items differ in threads and sizes mostly. YH insist on providing customers with best quality products for about 8 years.
Click here to send e-mail!
-
Part no.: 1J4(45 degrees JIC female male 74 degrees cone)
Material: Carbon steel; Mild steel; Brass; Stainless
Sizes: from 04 to 32(showed on technical data), for other sizes, please contact sales
Features: Tolerance controlled; smooth surface finish; competitive prices
After-sales: available
-

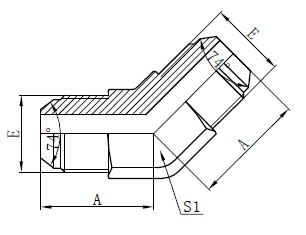

Drawing
Technical Data Table
代号
PART NO.
螺纹
尺寸 DIMENSIONS
THREAD E
A
B
S1
1J4-04
U7/16"X20
21.5
21.5
11
1J4-05
U1/2"X20
21.5
21.5
11
1J4-06
U9/16"X18
22
22
14
1J4-08
U3/4"X16
25
25
19
1J4-10
U7/8"X14
27
27
22
1J4-12
U1.1/16"X12
33
33
27
1J4-16
U1.5/16"X12
37
37
33
1J4-20
U1.5/8"X12
40
40
44
1J4-24
U1.7/8"X12
47
47
50
1J4-32
U2.1/2"X12
55
55
65
