JIC Male Cone Tee
AJ instead of JIC male 74 degrees cone tee have a 37 degrees cone seat on three sides. JIC adapters are an excellent choice for preventing leaks and can be used for higher pressure applications. JIC adapters provided are equivalent to JIC adapters from Parker, Eaton, Aeroquip, Weatherhead, and Gates Hydraulics.
Click here to send e-mail!
-
Part no.: AJ(JIC male 74 degrees cone tee)
Material: Mild Steel(Mostly); Stainless Steel or Brass(Special demands)
Threads: JIC; NPT; ORFS; Metric; BSP; BSPT; etc.
Specifications: products made according to standard(Winner) or customers’ designed drawings
Stock: many sizes kept as stock products
Sample: less than 5 piece free for checking quality
-

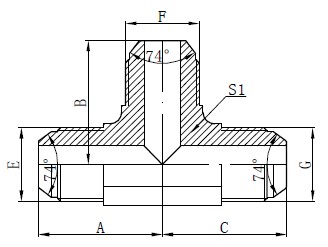

Drawing
Technical Data
代号
PART NO.
螺纹THREAD
尺寸 DIMENSIONS
E/G
F
A
B
C
S1
AJ-04
U7/16"X20
U7/16"X20
24.5
24.5
24.5
11
AJ-04-06-04
U7/16"X20
U9/16"X18
25
25
25
14
AJ-05
U1/2"X20
U1/2"X20
24.5
24.5
24.5
11
AJ-06-04-06
U9/16"X18
U7/16"X20
25
25
25
14
AJ-06
U9/16"X18
U9/16"X18
25
25
25
14
AJ-08
U3/4"X16
U3/4"X16
27.5
27.5
27.5
19
AJ-08-06-08
U3/4"X16
U9/16"X18
27.5
27.5
27.5
19
AJ-10
U7/8"X14
U7/8"X14
30
30
30
22
AJ-12
U1.1/16"X12
U1.1/16"X12
40
40
40
27
AJ-16
U1.5/16"X12
U1.5/16"X12
43
43
43
33
AJ-16-12-16
U1.5/16"X12
U1.0/16"X12
43
43
43
33
AJ-20
U1.5/8"X12
U1.5/8"X12
49
49
49
44
