NPT Male Connectors
1N4 is for 45 degrees NPT male and NPT is short for National Pipe Thread. It is a U.S. standard for tapered threads used on threaded pipes and fittings. In contrast to straight threads that are found on a bolt, a taper thread will pull tight and therefore make a fluid-tight seal. YH Hydraulic is not only a adapter fittings manufacturer but also a solution provider.
Click here to send e-mail!
-
Part no.: 1N4(45°NPT Male)
Related types: 1N(Straight type); 1N9(90 Degrees elbow); 7N(Female NPT)
Samples: Less than 5pcs are free of charge for checking quality
MOQ: required 300PCS for each items except stock products
Coating: zinc plated; or as to customers’ demands
-

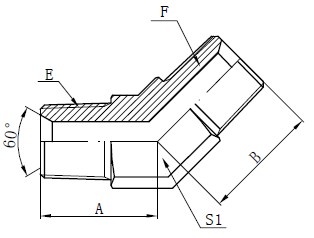

Drawing
Technical Data Table
代号
PART NO.
螺纹THREAD
尺寸 DIMENSIONS
E
F
A
B
S1
1N4-02
Z1/8"X27
Z1/8"X27
19
21
11
1N4-04
Z1/4"X18
Z1/4"X18
22
27
14
1N4-06
Z3/8"X18
Z3/8"X18
22
29
17
1N4-08
Z1/2"X14
Z1/2"X14
27
37
22
1N4-12
Z3/4"X14
Z3/4"X14
33
43
27
1N4-16
Z1"X11.5
Z1"X11.5
37
47
33
1N4-20
Z1.1/4"X11.5
Z1.1/4"X11.5
40
56
44
1N4-24
Z1.1/2"X11.5
Z1.1/2"X11.5
47
57
50
1N4-32
Z2"X11.5
Z2"X11.5
55
63
65
