  • Part no.: 1DO(metric male 24 degrees heavy type with SAE male o-ring thread)



    Brand: YH; If any logo products required, please email to us



    Sizes: specifications showed on technical data table are standard. But for sizes difference, please note on the enquiry list



    Delivery time: Within 15 days; as invoice indicated



    Nearest port: Ningbo, China

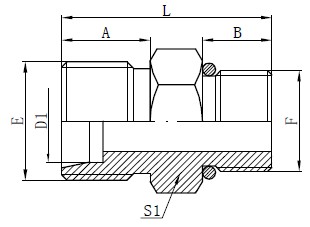

  • Drawing



    Technical Data Table

    代号

    PART NO.

    螺纹THREAD

    管子外径

    尺寸 DIMENSIONS

     E

     F

     TUBE O.D. D1

    A

    B

    S1

    L

    1DO-16-04

    M16X1.5

    U7/16"X20

    8

    13.5

    10

    17

    29

    1DO-18-06

    M18X1.5

    U9/16"X18

    10

    13.5

    12

    19

    31

    1DO-20-06

    M20X1.5

    U9/16"X18

    12

    13.5

    12

    22

    33

    1DO-20-08

    M20X1.5

    U3/4"X16

    12

    13.5

    12

    24

    32

    1DO-24-08

    M24X1.5

    U3/4"X16

    16

    14

    12

    24

    32

    1DO-24-10

    M24X1.5

    U7/8"X14

    16

    14

    13.5

    27

    37

    1DO-30-08

    M30X2

    U3/4"X16

    20

    18

    12

    32

    41

    1DO-30-10

    M30X2

    U7/8"X14

    20

    18

    13.5

    32

    42

    1DO-30-12

    M30X2

    U1.1/16"X12

    20

    18

    16

    32

    45

    1DO-42-16

    M42X2

    U1.5/16"X12

    30

    20

    17

    46

    50

    1DO-42-20

    M42X2

    U1.5/8"X12

    30

    20

    18

    50

    55

    1DO-52-20

    M52X2

    U1.5/8"X12

    38

    22

    18

    55

    57

    备注:如需带卡套及卡套螺母整套订货,请在代号后加“RN”,如“1DO-24-10RN”

    Remark: In case if you are interested to order the adapter in complete set with cutting ring and nut, it is necessary to insert suffix”RN”to our part no. For example: 1DO-24-10RN.
