JIS Metric Male Adapters
1K series adapter fittings are with thread type of JIS metric male 60 degrees cone. JIS is short for Japanese Industrial Standard which is a type of metric thread. Sizes daily produced are showed on technical data table with detail specifications. YH also welcome custom-orientated adapters with samples or drawings provided.
Click here to send e-mail!
-
Part no.: 1K(JIS Metric Male 60 Degrees Cone)
Surface treatment: Trivalent silver zinc; Trivalent yellow zinc; Hexavalent yellow zinc; Chrome plate; Electric-polish, etc
Inspection: 100% before package
Advantage: Competitive price; Reliable quality; Strong supply capability; Perfect surface finish
Delivery: With 25 days for re-produced items
-

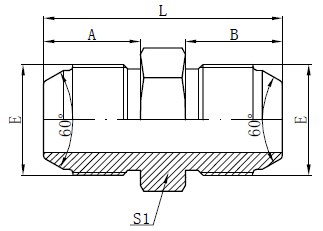

Drawing
Technical Data Table
代号
PART NO.
螺纹
尺寸 DIMENSIONS
THREAD E
A
B
S1
L
1K-14
M14X1.5
17
17
17
40
1K-16
M16X1.5
18
18
17
42
1K-18
M18X1.5
18
18
19
42
1K-20
M20X1.5
20
20
22
48
1K-22
M22X1.5
20
20
24
48
1K-24
M24X1.5
21.5
21.5
27
53
1K-30
M30X1.5
26
26
32
63
1K-33
M33X1.5
30
30
36
71
1K-36
M36X1.5
33
33
41
78
1K-42
M42X1.5
36
36
46
85
