  • Part no.: 6C(Metric Male 24°Light Type Bulkhead)


    Size range: from M12 to M52; For bigger or smaller ones, please advise our sales.


    Type: With or without cutting ring and nuts are available for selling.


    Quality: Highly precision manufactured; good packed; best quality of material(carbon steel)


    Standard: Winner(same as Eaton); other standard products need part no.s to check out with ours.


    Package: cartons with plastic cover; wooden case with plastic cover

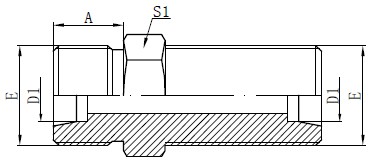

  • Drawing



    Technical Data Table

    代号

    PART NO.

    螺纹

    管子外径

    尺寸 DIMENSIONS

    THREAD E

     TUBE O.D. D1

    A

    S1

    6C-12

    M12X1.5

    6

    11

    12

    6C-14

    M14X1.5

    8

    13

    14

    6C-16

    M16X1.5

    10

    13.5

    17

    6C-18

    M18X1.5

    12

    13.5

    19

    6C-22

    M22X1.5

    15

    14

    24

    6C-26

    M26X1.5

    18

    14

    27

    6C-30

    M30X2

    22

    18

    32

    6C-33

    M33X2

    25

    18

    36

    6C-45

    M45X2

    35

    19

    46

    6C-52

    M52X2

    42

    19

    55

    备注:如需带卡套及卡套螺母整套订货,请在代号后加“RN”,如“6C-14RN”,如需带锁母订货,请在代号后加“LN”,如“6C-14LN”

    Remark: In case if you are interested to order the adapter in complete set with cutting ring and nut, it is necessary to insert suffix”RN”to our part no. For example: 6C-14RN. If order it with cutting ring and nut, insert suffix“LN”after part no. For example“6C-14LN”
