  • Part no.: 1DB-WD(Metric Male 24°Heavy Type; BSP With Captive Seal)


    Material: Fitting part: mild steel; Captive seal: rubber


    Type: support selling complete set with cutting rings and nuts


    MOQ policy: 300PCS to 500PCS each item


    Shipping term: FOB(Ningbo) or CIF(customer’s port) acceptable; shipping data is less than 30 days for one order(reproduced items)

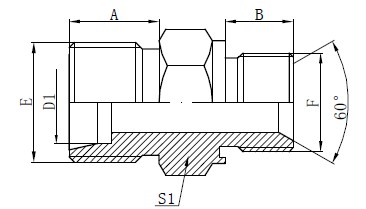

  • Drawing



    Technical Data Table

    代号

    PART NO.

    螺纹THREAD

    管子外径

    尺寸 DIMENSIONS

     E

     F

     TUBE O.D. D1

    A

    B

    S1

    1DB-14-04WD

    M14X1.5

    G1/4"X19

    6

    13

    12

    19

    1DB-16-04WD

    M16X1.5

    G1/4"X19

    8

    13.5

    12

    19

    1DB-16-06WD

    M16X1.5

    G3/8"X19

    8

    13.5

    13.5

    22

    1DB-18-04WD

    M18X1.5

    G1/4"X19

    10

    13.5

    12

    19

    1DB-18-06WD

    M18X1.5

    G3/8"X19

    10

    13.5

    13.5

    22

    1DB-18-08WD

    M18X1.5

    G1/2"X14

    10

    13.5

    16

    27

    1DB-20-04WD

    M20X1.5

    G1/4"X19

    12

    13.5

    12

    22

    1DB-20-06WD

    M20X1.5

    G3/8"X19

    12

    13.5

    13.5

    22

    1DB-20-08WD

    M20X1.5

    G1/2"X14

    12

    13.5

    16

    27

    1DB-22-08WD

    M22X1.5

    G1/2"X14

    14

    14

    16

    27

    1DB-24-06WD

    M24X1.5

    G3/8"X19

    16

    14

    13.5

    27

    1DB-24-08WD

    M24X1.5

    G1/2"X14

    16

    14

    16

    27

    1DB-24-12WD

    M24X1.5

    G3/4"X14

    16

    14

    18.5

    32

    1DB-30-12WD

    M30X2

    G3/4"X14

    20

    18

    18.5

    32

    1DB-42-20WD

    M42X2

    G1.1/4"X11

    30

    20

    20.5

    50

    1DB-52-24WD

    M52X2

    G1.1/2"X11

    38

    22

    23

    55

    备注:如需带卡套及卡套螺母整套订货,请在代号后加“RN”,如“1DB-14-04WD/RN”

    Remark: In case if you are interested to order the adapter in complete set with cutting ring and nut, it is necessary to insert suffix”RN”to our part no. For example: 1DB-14-04WD/RN.
