R12 High Pressure Hose
YH-R12-30212 hose assemblies are composed with SAE 100R12 hose, metric female flat seal fittings for spiral hoses, and 00400 ferrules. Complete sizes are offered which can be checked with following tables. YH Hydraulic is offering no leaking oil for hydraulic hose assemblies that can provide a good and efficient working when put into usage.
Click here to send e-mail!
-
Part no.: YH-R12-30212(Hose: SAE 100R12; Fitting: Metric Female Flat Seal For Spiral Hose)
Ferrule type: 00400(ferrule for four wire braided hose such as R12, 4SP, 4SH, etc)
Material: fittings are manufactured with 45 carbon steel; ferrules are with 20 carbon steel.
Temp.: available for -40℃ up to +100℃(Max.: +120℃)
Delivery time: less than 10 days if fittings and hoses are in stock
Delivery ports: available for Ningbo port, Shanghai port, Guangzhou port, etc.
-
Hose Technical Data
名义直径
Nominal
Diameter
内径
Inside diameter mm
钢丝层直径
Reinforcement
Diameter mm
外径
Outside diameter mm
工作压力working pressure MPa
试验压力
Proof pressure
MPa
爆破压力burst pressure
MPa
最小弯曲
Min. bend
Radius
mm
Min
Max
Min
Max
Min
Max
Min
Max
Max
Min
12.5
1/2
15.5
13.5
19.9
21.5
23.0
24.6
28.0
56.0
112.0
180
16
5/8
12.3
16.7
23.8
25.4
26.6
28.2
28.0
56.0
112.0
205
19
3/4
18.6
19.8
26.9
28.4
29.9
31.5
28.0
56.0
112.0
240
25
1
25.0
26.4
34.1
35.7
36.8
39.2
28.0
56.0
112.0
300
31.5
1.1/4
31.4
33.0
42.7
45.1
45.4
48.6
21.0
42.0
84.0
420
38
1.1/2
37.7
39.3
49.2
51.6
51.9
55.0
17.0
35.0
70.0
500
51
2
50.4
52.0
62.5
64.8
65.1
68.3
17.5
35.0
70.0
630

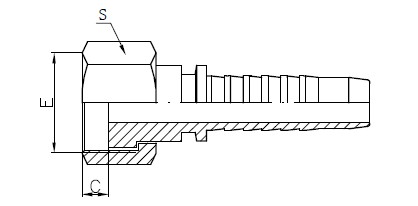

Fitting Drawing
Fitting Technical Data
代号
PART NO.
螺纹E
THREAD E
胶管 HOSE BORE
尺 寸 DIMENSIONS
公称内径DN
标 号 DASH
C
S
30212-22-08
M22X1.5
12
08
10
27
30212-30-12
M30X1.5
20
12
11.5
36
30112-36-14
M36X2
22
14
13
41
30112-36-16
M36X2
25
16
13
41
30212-39-16
M39X2
25
16
13
46
30212-42-16
M42X2
25
16
15
50
30212-45-20
M45X2
32
20
15
55
30212-52-20
M52X2
32
20
17
60
30212-52-24
M52X2
38
24
17
60
30212-64-32
M64X2
50
32
23
75
