Hydraulic Hose Assemblies
YH-4SP-87613 hose assemblies are composed with DIN EN856 4SP hose, SAE flange 6000PSI fittings for interlock, and interlock ferrules. Sizes details are showed below on technical data tables. Hose assembly types are designed by customers that can be made as different demands from the machine connections.
Click here to send e-mail!
-
Part no.: YH-4SP-87613(Hose: DIN EN856 4SP; Fitting: SAE Flange 6000PSI For Interlock)
Ferrule type: 00601(Interlock ferrule for R13 strengthen hose); 00605(Interlock ferrule for R13 strengthen hose)
Application: suitable for transmit hydraulic fluid such as alcohol, oil hydraulic pressure, fuel, lubricants, emulsion, hydrocarbons, etc.
MOQ: 20PCS for each item
Delivery port: Ningbo, Shanghai, Guangzhou , etc.
Delivery time: less than 7 days for stock products; less than 25 days for one order
-
Hose Technical Data
名义直径
Nominal
Diameter
内径
Inside diameter mm
钢丝层直径
Reinforcement
Diameter mm
外径
Outside diameter mm
工作压力working pressure MPa
试验压力
Proof pressure
MPa
爆破压力burst pressure
MPa
最小弯曲
Min. bend
Radius
mm
Min
Max
Min
Max
Min
Max
Min
Max
Max
Min
12
1/2
15.5
13.5
19.4
21.0
23.8
25.4
41.5
83.0
166.0
230
16
5/8
12.3
16.7
23.0
24.6
27.4
29.0
35.0
70.0
140.0
250
19
3/4
18.6
19.8
27.4
29.0
31.4
33.0
35.0
70.0
140.0
300
25
1
25.0
26.4
34.5
36.1
38.5
40.9
28.0
56.0
112.0
340
31
1.1/4
31.4
33.0
45.0
47.0
49.2
52.4
21.0
42.0
184.0
460
38
1.1/2
37.7
39.3
51,4
53.4
55.6
58.8
18.5
37.0
74.0
560
51
2
50.4
52.0
64.3
66.3
68.2
71.4
16.5
33.0
66.0
660

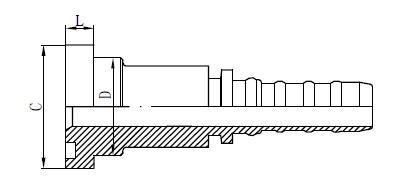

Fitting Drawing
Fitting Technical Data
代号
PART NO.
法兰尺寸
FLANGE SIZE
胶管 HOSE BORE
尺 寸 DIMENSIONS
公称内径DN
标 号 DASH
C
D
L
87613-08-08
1/2"
12
08
31.8
23.9
7.9
87613-12-12
3/4"
20
12
41.3
31.7
8.9
87613-16-16
1"
25
16
47.6
38
9.6
87613-20-20
1.1/4"
32
20
54
43.6
10.4
87613-24-24
1.1/2"
40
24
63.5
50.8
12.7
87613-32-32
2"
50
32
79.4
66.5
12.7
