Low Pressure Hose Assembly
YH-4SP-22611D hose assemblies are composed with 4SP hoses, BSP female double hexagon fittings and ferrules are four wire hoses. YH Hydraulic use advanced crimping machines to ensure high precision and good appearance. Each assembly is packed with same length of plastic film to protect from collision in the delivery.
Click here to send e-mail!
-
Part no.: YH-4SP-22611D(Hose: DIN EN856 4SP; Fitting: BSP Female 60°Cone With Double Hexagon)
Ferrule type: 00400 ferrules are used in the assembly which is special for four wire braided hydraulic hose.
Assembly application: in the fields of agriculture, manufacturing, transportation, mining, construction, automotive equipments, etc.
Types: we can make hose assemblies to customers’ demands that are hose types, fitting types, length, etc.
Advantage: reasonable prices, high quality, good precision
-
Hose Technial Data
名义直径
Nominal
Diameter
内径
Inside diameter mm
钢丝层直径
Reinforcement
Diameter mm
外径
Outside diameter mm
工作压力working pressure MPa
试验压力
Proof pressure
MPa
爆破压力burst pressure
MPa
最小弯曲
Min. bend
Radius
mm
Min
Max
Min
Max
Min
Max
Min
Max
Max
Min
12
1/2
15.5
13.5
19.4
21.0
23.8
25.4
41.5
83.0
166.0
230
16
5/8
12.3
16.7
23.0
24.6
27.4
29.0
35.0
70.0
140.0
250
19
3/4
18.6
19.8
27.4
29.0
31.4
33.0
35.0
70.0
140.0
300
25
1
25.0
26.4
34.5
36.1
38.5
40.9
28.0
56.0
112.0
340
31
1.1/4
31.4
33.0
45.0
47.0
49.2
52.4
21.0
42.0
184.0
460
38
1.1/2
37.7
39.3
51,4
53.4
55.6
58.8
18.5
37.0
74.0
560
51
2
50.4
52.0
64.3
66.3
68.2
71.4
16.5
33.0
66.0
660

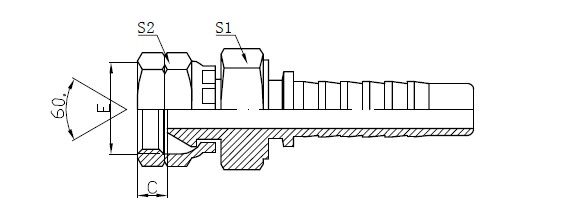

Fitting Drawing
Fitting Technical Data
代号
PART NO.
螺纹E
THREAD E
胶管 HOSE BORE
尺 寸 DIMENSIONS
公称内径DN
标 号 DASH
C
S1
S2
22611D-04-04
G1/4"X19
6
04
5.5
19
19
22611D-06-06
G3/8"X19
10
06
6.5
22
22
22611D-08-08
G1/2"X14
12
08
8
27
27
22611D-12-12
G3/4"X14
20
12
11.5
32
32
22611D-16-16
G1"X11
25
16
11.5
41
41
22611D-20-20
G1 1/4"X11
32
20
12
50
50
22611D-24-24
G1 1/2"X11
40
24
13
55
55
22611D-32-32
G2"X11
50
32
16
70
70
