Part no.: 00100

Processing Equipment: CNC machines, raw material cutting machines, automatic punch

Certificate: ISO9001:2008

Standards: Winner production standard(also welcome customers’ standards like Parker and Manuli)

Brand: YH

Inspection: About 5 times.

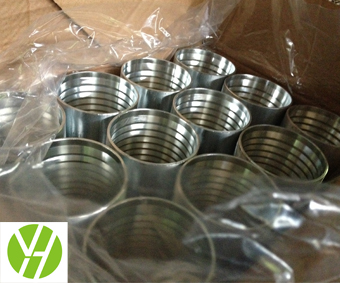

1. Pictures for 1SN Hose Hydraulic Sleeve, hose ferrules, hose sleeves, hose collars

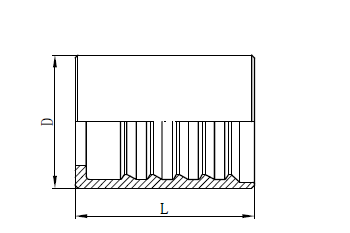

2. Different models of hose ferrules for your choice

  Ferrules for SAE 100R1AT, DIN EN853 1SN: 00110 and 00100

  Ferrules for SAE 100R2AT, DIN EN853 2SN: 00210 and 00200

  Ferrules for SAE 100R1AT, DIN EN853 1SN, SAE 100R2AT, DIN EN853 2SN: 03310

  Ferrules for DIN EN856 4SP, DIN EN865 4SH, SAE 100R12: 00400

  Ferrules for SAE 100R7/R8 hoses: 00018

(See details on YH catalog)

3. Raw Material

  20 carbon steel  316 stainless steel  304 stainless steel

4. Flow chat

  YH Hydraulic has rich experiences in 1SN Hose Hydraulic Sleeve production. We are able to supply different kinds of hydraulic hose ferrules, such as ferrules for R1AT 1SN hoses, ferrules for R2AT 2SN hoses, ferrules for 4SP 4SH R12 hoses, etc. Also we can produce sizes with customers’ requirements. It is a perfect idea to crimp good ferrules with fittings to make hose assemblies without leaking.

  Raw material cutting--Raw material forging--CNC machines fashioning--Marking part no. on ferrule body--Galvanization--Packing

5. Coating Options

  White zinc plated   Yellow zinc plated   Cr3 plated

6. Delivery

  The ferrules are possible to be packed in wooden cases after putting in cartons with plastic firm wrapped.

7. Products Application
