Hydraulic Ferrules
Your current location : Home » Products » Hydraulic Ferrules » Skive Steel Ferrule

Click here to send e-mail!

  • Part no.: 00200



    Brand Name: YH



    Place of Origin: Ningbo, China(Mainland)



    Material: Carbon Steel #20(Mild steel)



    Delivery time: within 10 days after receiving deposit



    Package: Nylon plastic; corrugated carton; Multiple plywood case



    Custom-orientated Service: YH can offer designs to customers and also welcome customers’ drawings or samples.



    1. Pictures for Skive Steel Ferrule, hose ferrules, hose sleeves, hose collars







    2. Different models of hose ferrules for your choice

      Ferrules for SAE 100R1AT, DIN EN853 1SN: 00110 and 00100

      Ferrules for SAE 100R2AT, DIN EN853 2SN: 00210 and 00200

      Ferrules for SAE 100R1AT, DIN EN853 1SN, SAE 100R2AT, DIN EN853 2SN: 03310

      Ferrules for DIN EN856 4SP, DIN EN865 4SH, SAE 100R12: 00400

      Ferrules for SAE 100R7/R8 hoses: 00018

    (See details on YH catalog)



    3. Raw Material

      20 carbon steel  316 stainless steel  304 stainless steel



    4. Flow chat

      YH Hydraulic has rich experiences in Skive Steel Ferrule production. We are able to supply different kinds of hydraulic hose ferrules, such as ferrules for R1AT 1SN hoses, ferrules for R2AT 2SN hoses, ferrules for 4SP 4SH R12 hoses, etc. Also we can produce sizes with customers’ requirements. It is a perfect idea to crimp good ferrules with fittings to make hose assemblies without leaking.

      Raw material cutting--Raw material forging--CNC machines fashioning--Marking part no. on ferrule body--Galvanization--Packing



    5. Coating Options

      White zinc plated   Yellow zinc plated   Cr3 plated

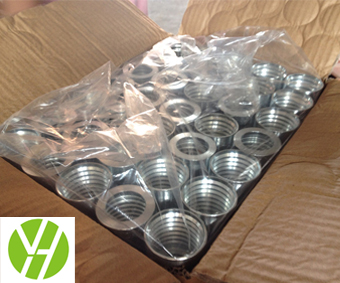

    6. Delivery

      The ferrules are possible to be packed in wooden cases after putting in cartons with plastic firm wrapped.















    7. Products Application

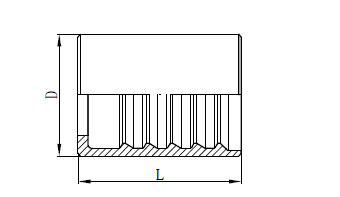

  • Drawing



    Technical Data

    代号

    PART NO.

    胶管 HOSE BORE

    尺寸 DIMENSIONS

    公称内径 DN

    标 号 DASH

    D

    L

    00200-02

    4

    02

    20.6

    27

    00200-04

    6

    04

    21

    30.2

    00200-05

    8

    05

    24

    32

    00200-06

    10

    06

    24.5

    32

    00200-08

    12

    08

    30

    34

    00200-10

    16

    10

    33.4

    39.2

    00200-12

    20

    12

    38

    43.4

    00200-16

    25

    16

    46

    50

    00200-20

    32

    20

    56

    57

    00200-24

    40

    24

    62

    60

    00200-32

    50

    32

    75

    75
