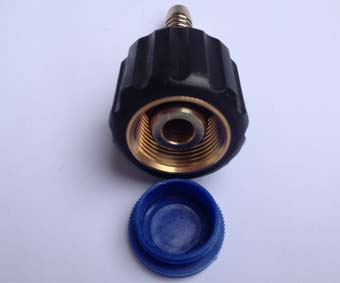

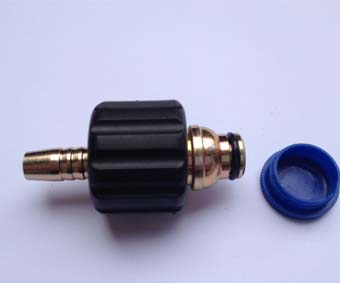

  • Part no.: 30011(Metric Female Waterwash Insert)


    Three sizes: thread size is M22. Hose sizes available: 1/4’’, 5/16’’, 3/8’’


    MOQ policy: require 200pcs each item


    Product details:

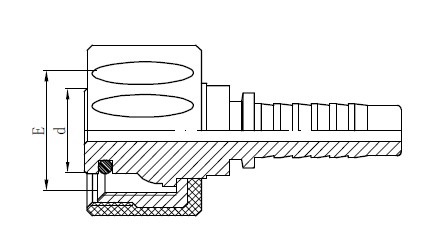

  • Drawing



    Technical Data Table

    代号

    PART NO.

    螺纹E

    THREAD E

    胶管 HOSE BORE

    尺  寸   DIMENSIONS

    公称内径DN

    标 号 DASH

    D

    30011-22-04

    M22X1.5

    6

    04

    14

    30011-22-05

    M22X1.5

    8

    05

    14

    30011-22-06

    M22X1.5

    10

    06

    14
