BSP Banjo Fitting
72011 BSP banjo fitting comprises a perforated hollow bolt and spherical union for fluid transfer. Banjo fittings are commonly found in automotive fuel, oil and hydraulic systems like brakes and clutch. This name stems are from the shape of fittings which have a large circular section connected to a thinner pipe, generally similar to the shape of a banjo.
Click here to send e-mail!
-
Part no.: 72011(BSP Banjo)
Usage: High pressure application
Sizes: From 1/4’’ to 1’’ produced in YH Hydraulic mostly; other sizes are available
Advantage: Quality assurance and favorable prices
Delivery: Timely to invoice requires
Samples: Less than 5pcs free of charge if stock items
-

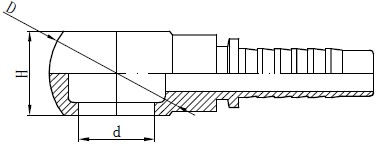

Drawing
Technical Data Table
代号
PART NO.
螺纹E
THREAD E
胶管 HOSE BORE
尺 寸 DIMENSIONS
公称内径DN
标 号 DASH
d
D
H
72011-04-04
G1/4"
6
04
13.3
24
15
72011-04-05
G1/4"
8
05
13.3
24
15
72011-06-05
G3/8"
10
06
16.7
29
20
72011-06-06
G3/8"
10
06
16.7
29
19
72011-08-06
G1/2"
12
08
21
38
25
72011-08-08
G1/2"
12
08
21
38
25
72011-10-10
G5/8"
16
10
23
40
27
72011-12-12
G3/4"
20
12
26.5
46
31
72011-16-16
G1"
25
16
33.3
60
42
