Metric Female Multiseal Fittings
Hose fitting 30111 are with metric female multi-seal thread type. 30111 fittings are non-crimped types which are widely used in hydraulic fluid connections. And if crimped type required, please refer to 20111 types or contact us for details. YH is a professional manufacturer and reliable supplier in hydraulic field for more than 8 years. If any similar products required, we believe YH will be your right choice.
Click here to send e-mail!
-
Part no.: 30111(Metric Female Multi-seal)
Type: 20111(Crimped type); 30111(non-crimped type)
Stock condition: most items have been kept as stock products which can shorten the delivery time
Delivery time: 1 to 2 weeks
Package details: put in corrugated carton with nylon plastic then get together in multiple plywood case
Custom-orientated service: produce according to drawings or samples provided.
-

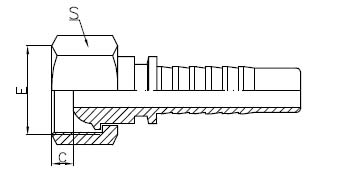

Drawing
Technical Data Table
代号
PART NO.
螺纹E
THREAD E
胶管 HOSE BORE
尺 寸 DIMENSIONS
公称内径DN
标 号 DASH
C
S
30111-14-04
M14X1.5
6
04
4
19
30111-16-05
M16X1.5
8
05
4.5
22
30111-18-06
M18X1.5
10
06
4.5
24
30111-22-08
M22X1.5
12
08
5
27
30111-27-10
M27X1.5
16
10
4.5
32
30111-30-12
M30X1.5
20
12
4.5
36
30111-36-14
M36X2
22
14
5
41
30111-39-16
M39X2
25
16
5
46
30111-45-20
M45X2
32
20
5
55
30111-52-24
M52X2
40
24
5
60
