Metric Male Light Types
10411 fittings are metric male 24 degree cone seat light type DIN3853. 10411 fittings are manufactured from 1/4’’ to 1.1/2’’ popularly. 10411 fittings are finished with zinc plated that three types can be chosen commonly which are zinc plated, chrome plated, and nickel plated. Fittings from YH Hydraulic are of good quality that can be installed easies and used for a long life term.
Click here to send e-mail!
-
Part no.: 10411(Metric Male 24°Cone Seat L.T. DIN3853)
Colors: white; yellow; silver
Coating: white zinc plated, yellow zinc plated, chrome plated, nickel plated, painting
Samples service: less than 5pcs in stock is free of charge
Our advantage: smooth surface, good tolerance controlled, high quality material used, reasonable prices provided
-

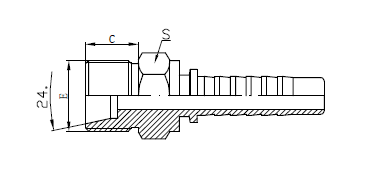

Drawing
Technical Data Table
代号
PART NO.
螺纹E
THREAD E
胶管 HOSE BORE
管子外径
TUBE.O.D
尺 寸 DIMENSIONS
公称内径DN
标 号 DASH
C
S
10411-12-04
M12x1.25
6
04
6
11
14
10411-14-04
M14X1.5
6
04
8
13
17
10411-16-05
M16x1.5
8
05
10
13.5
17
10411-18-06
M18x1.5
10
06
12
13.5
19
10411-22-08
M22x1.5
12
08
15
13.5
24
10411-26-10
M26x1.5
16
10
18
14
27
10411-27-10
M27x1.5
16
10
18
14
27
10411-30-12
M30X2
20
12
22
18
32
10411-36-16
M36X2
25
16
28
20
41
10411-45-20
M45X2
32
20
35
20
46
10411-52-24
M52X2
40
24
42
19
55
