  • Part no.: 20711(GB Metric Female 74°Cone Seat)



    Material: Iron, carbon steel, stainless steel, or other required material



    Standard(Specification): Winner production standard; as per drawings or samples.



    Surface treatment: zinc plated, nickel plated; chrome plated; hot-dip galvanized; painting



    Our features: Corrosion resistance, good color and luster, high durability, high precision, high performance.

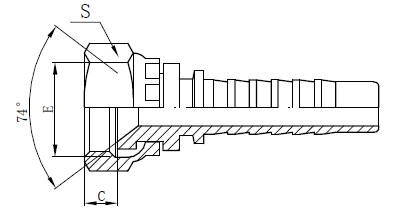

  • Drawing



    Technical Data Table

    代号

    PART NO.

    螺纹E

    THREAD E

    胶管 HOSE BORE

    尺  寸 DIMENSIONS

    公称内径 DN

    标 号DASH

    C

    S

    20711-12-02

    M12X1.5

    4

    02

    8

    17

    20711-12-04

    M12X1.5

    6

    04

    8

    17

    20711-14-04

    M14X1.5

    6

    04

    9

    19

    20711-14-05

    M14X1.5

    8

    05

    9

    19

    20711-14-06

    M14X1.5

    10

    06

    9

    19

    20711-16-05

    M16X1.5

    8

    05

    9.5

    22

    20711-16-06

    M16X1.5

    10

    06

    9.5

    22

    20711-18-06

    M18X1.5

    10

    06

    9.5

    24

    20711-20-06

    M20X1.5

    10

    06

    10

    27

    20711-20-08

    M22X1.5

    12

    08

    10

    27

    20711-22-08

    M22X1.5

    12

    08

    9.5

    27

    20711-27-10

    M27X1.5

    16

    10

    10.5

    32

    20711-30-12

    M30X1.5

    20

    12

    12.5

    36

    20711-33-14

    M33X2

    22

    14

    13.5

    41

    20711-33-16

    M33X2

    25

    16

    13.5

    41

    20711-42-20

    M42X2

    32

    20

    15.5

    50
