87612one piece fittings are SAE flange 6000PSI for spiral hose four wire integral fittings. 87612one piece fittings are made from 45 carbon steel mostly in YH Hydraulic but the crimped ferrule are in mild steel. Advanced Ferrule Crimping Machines are used in the crimping procedure to control the high precision.
Click here to send e-mail!
-
Part no.: 87612one piece(SAE Flange 6000PSI For Spiral Hose Four-wire Integral Fitting)
Sizes: suitable for flange sizes: 1/2’’ to 2’’; others please contact us
Price: price quoted are with 45 carbon steel; for other materials, please advise us in advance.
Ferrule types: 00400(ferrules for spiral hoses)
Samples: less than 2pcs is free of charge for checking the quality.
-

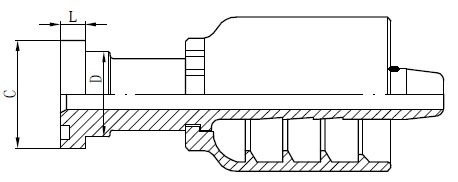

Drawing
Technical Data Table
代号
PART NO.
法兰尺寸
FLANGE SIZE
胶管
HOSE BORE
尺 寸
DIMENSIONS
公称内径DN
标 号 DASH
C
D
L
87612-08-08one piece
1/2"
12
08
31.8
23.9
7.9
87612-12-12one piece
3/4"
20
12
41.3
31.7
8.9
87612-16-16one piece
1"
25
16
47.6
38
9.6
87612-20-20one piece
1.1/4"
32
20
54
43.6
10.4
87612-24-24one piece
1.1/2"
40
24
63.5
50.8
12.7
87612-32-32one piece
2"
50
32
79.4
66.5
12.7
