SAE Flange Fittings
Item 87312 flange fittings are for SAE flange 3000PSI for spiral hoses. It can be used for both two steel wire braided hoses and spiral hoses. Popular flange sizes are from 1/2’’ to 2’’. Part no. 87311 is a little shorter than 87312 at the tail dimension. It is for two steel wire braided hoses which can be produced in YH Hydraulic.
Click here to send e-mail!
-
Part no.: 87312(SAE Flange 3000PSI Fittings For Spiral Hose)
Finishing: Zinc-plated(Cr6) to protect from rusting
Popular color: Yellow; White; Silver
Production Standard: Based on Winner(Eaton)
Stock: Many items are kept in large
Delivery time: within 10 days(according to quantity and items required)
-

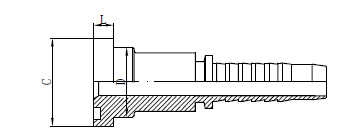

Drawing
Technical Data
代号
PART NO.
法兰尺寸
FLANGE SIZE
胶管 HOSE BORE
尺 寸 DIMENSIONS
公称内径DN
标 号 DASH
C
D
L
87312-08-08
1/2"
12
08
30.2
23.9
7
87312-12-12
3/4"
20
12
38.1
31.7
7
87312-16-16
1"
25
16
44.4
38
8.2
87312-20-20
1.1/4"
32
20
50.8
43.2
8.2
87312-24-24
1.1/2"
40
24
60.3
50.3
8.2
87312-32-32
2"
50
32
71.4
62.2
9.8
