  • Part no.: YH-R2A-30111(Hose: SAE 100R2A; Fitting: Metric Female Multi-seal)


    Ferrule type: 00210(ferrule for two wire braided hose); 03310(ferrule for one or two wire braided hose)


    YH assembly features: high tightness, long service life, good oil resistance, good surface, reasonable selling prices, etc


    The working temperature can range from -40℃ to +100℃


    They can be appropriate for hydraulic, oil-carrying, or lubricating parts of all kinds of mechanical equipments.

  • Hose Technical Data

    名义直径

    Nominal

    Diameter

    内径

    Inside  diameter mm

    钢丝层直径

    Reinforcement

    Diameter mm

    外径

    Outside diameter mm

    工作压力working pressure MPa

    试验压力

    Proof pressure

    MPa

    爆破压力burst pressure

    MPa

    最小弯曲

    Min. bend

    Radius

    mm

    Min

    Max

    Min

    Max

    Min

    Max

    Min

    Max

    Max

    min

    5

    3/16

    4.6

    5.4

    10.6

    11.7

    15.1

    16.7

    35.0

    70.0

    140.0

    90

    6.3

    1/4

    6.2

    7.0

    12.1

    13.3

    16.7

    18.3

    35.0

    70.0

    140.0

    100

    8

    5/16

    7.7

    8.5

    13.7

    14.9

    18.3

    19.8

    29.7

    59.4

    118.8

    115

    10

    3/8

    9.3

    10.1

    16.1

    17.3

    20.6

    22.2

    28.0

    56.0

    112.0

    125

    12.5

    1/2

    15.5

    13.5

    19.0

    20.6

    23.8

    25.4

    24.5

    49.0

    98.0

    180

    16

    5/8

    12.3

    16.7

    22.2

    23.8

    27.0

    28.6

    19.2

    38.4

    76.8

    205

    19

    3/4

    18.6

    19.8

    26.2

    27.8

    31.0

    32.5

    15.7

    31.4

    62.8

    240

    25

    1

    25.0

    26.4

    34.1

    35.7

    38.5

    40.9

    14.0

    28.0

    56.0

    300

    31.5

    1.1/4

    31.4

    33.0

    43.2

    45.6

    49.2

    52.4

    11.3

    22.6

    45.2

    420

    38

    1.1/2

    37.7

    39.3

    49.6

    52.0

    55.6

    58.7

    8.7

    17.4

    34.8

    500

    51

    2

    50.4

    52.0

    62.3

    64.7

    68.3

    71.4

    7.8

    15.5

    31.0

    630

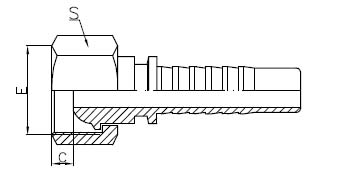

    Fitting Drawing



    Fitting Technical Data

    代号

    PART NO.

    螺纹E

    THREAD E

    胶管 HOSE BORE

    尺  寸   DIMENSIONS

    公称内径DN

    标 号 DASH

    C

    S

    30111-14-04

    M14X1.5

    6

    04

    4

    19

    30111-16-05

    M16X1.5

    8

    05

    4.5

    22

    30111-18-06

    M18X1.5

    10

    06

    4.5

    24

    30111-22-08

    M22X1.5

    12

    08

    5

    27

    30111-27-10

    M27X1.5

    16

    10

    4.5

    32

    30111-30-12

    M30X1.5

    20

    12

    4.5

    36

    30111-36-14

    M36X2

    22

    14

    5

    41

    30111-39-16

    M39X2

    25

    16

    5

    46

    30111-45-20

    M45X2

    32

    20

    5

    55

    30111-52-24

    M52X2

    40

    24

    5

    60
