R1AT Hose BSP Fittings
Item 22191 series fittings are 90 degrees BSP female multiseal thread types. YH production covers a comprehensive line of hydraulic fittings which thread types are metric, BSP, BSPT, NPT and JIC. YH insist on producing higher quality of fittings. So We check specifications each step of fitting manufacturing strictly.
Click here to send e-mail!
-
Part no.: 22191(90 degrees BSP female multiseal)
Products: More than 10000 items such as high pressure hoses, ferrules, fittings, adapters, machines, and hose assemblies
Trading market: North America, South America, Europe, Middle East, and Asia
Standard: Production standard is Winner
Material: Carbon steel, alloy steel, stainless steel, aluminum, and brass
-

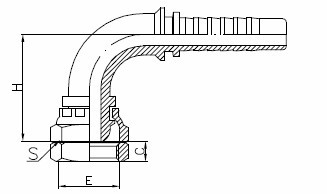

Drawing
Technical Data Table
代号
PART NO.
螺纹E
THREAD E
胶管 HOSE BORE
尺 寸 DIMENSIONS
公称内径DN
标 号 DASH
C
S
H
22191-04-04
G1/4"X19
6
04
4
19
38.5
22191-06-05
G3/8"X19
8
05
6
22
42
22191-06-06
G1/4"X19
10
06
6
22
44.8
22191-08-08
G1/2"X14
12
08
7
27
52
22191-10-10
G5/8"X14
16
10
7
30
57.5
22191-12-12
G3/4"X14
20
12
8
32
68
22191-16-16
G1"X11
25
16
7.5
41
75
22191-20-20
G1¼"X11
32
20
7
50
85
22191-24-24
G1½"X11
40
24
7
55
108
22191-32-32
G2"X11
50
32
9
70
123.8
