6000PSI Flange Fitting
87612 are SAE 6000 flange fittings for spiral hoses, one wire hoses, as well as two wire hoses. Flange fittings are coming in material of 45 carbon steel or customer required materials. YH control strictly on the material quality so that fittings quality can be ensured. We are providing complete sizes which are showed on “Technical Data Table”.
Click here to send e-mail!
-
Part no.: 87612(SAE Flange 6000PSI For Spiral Hose)
Flange sizes available: from 1/2’’ to 2’’ are widely manufactured in YH Hydraulic
Stock: large quantity and most items are kept in YH stock
Delivery time: less than 10 days after receiving the deposit or total payment
Surface treatment: zinc-plated; chrome plated; painting
-

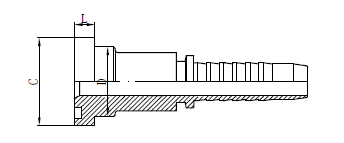

Drawing
Technical Data Table
代号
PART NO.
法兰尺寸
FLANGE SIZE
胶管 HOSE BORE
尺 寸 DIMENSIONS
公称内径DN
标 号 DASH
C
D
L
87612-08-08
1/2"
12
08
31.8
23.9
7.9
87612-12-12
3/4"
20
12
41.3
31.7
8.9
87612-16-16
1"
25
16
47.6
38
9.6
87612-20-20
1.1/4"
32
20
54
43.6
10.4
87612-24-24
1.1/2"
40
24
63.5
50.8
12.7
87612-32-32
2"
50
32
79.4
66.5
12.7
