NPT Male Connectors

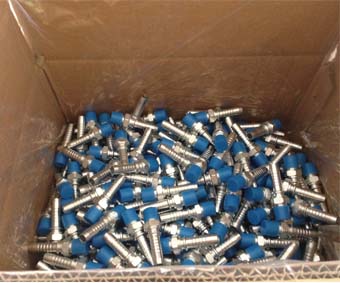

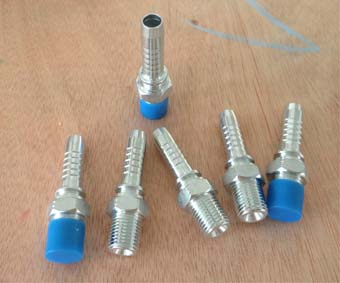

15611 fittings are with NPT male thread which is short for National Pipe Thread Taper. NPT is a U.S. standard for tapered threads used on hydraulic hose fittings. 15611 fittings have complete sizes from 1/4 inch to 2 inch which are for one steel wire braided hydraulic hose such as R1AT, ISN, 1SC, etc. These fittings are produced by CNC machines that can control right tolerance and smooth surface as required.
Click here to send e-mail!
-
Part no.: 15611(NPT Male)
Standard: Winner or Eaton production standard. Custom-orientated fittings are welcomed
Quality control: ISO9001-2008
Color: White; Yellow; Sliver(after zinc-plated)
Sizes: showed on technical data table are commonly produced ones; others also available
-
Drawing
Technical Data Table
代号
PART NO.
螺纹E
THREAD E
胶管 HOSE BORE
尺 寸 DIMENSIONS
公称内径DN
标 号 DASH
C
S
15611-04-04
Z1/4"X18
6
04
14
17
15611-06-06
Z3/8"X18
10
06
14
19
15611-08-08
Z1/2"X14
12
08
19
22
15611-12-10
Z3/4"X14
16
10
19.5
30
15611-12-12
Z3/4"X14
20
12
19.5
30
15611-16-16
Z1"X11.5
25
16
24
36
15611-20-20
Z1¼"X11.5
32
20
25
46
15611-24-24
Z1½"X11.5
40
24
25
50
15611-32-32
Z2"X11.5
50
32
28
65
