Long Drop Bend Flange
87692-12-12H series are for 90 degrees SAE flange 6000PSI for spiral hoses and flanges size are 3/4’’. YH is providing complete items of long drop flange fittings which material is 45 carbon steel. These fittings are produced by CNC machines who can ensure the precision, required tolerance, and high degree of smooth finish.
Click here to send e-mail!
-
Part no.: 87692-12-12H(90 degrees SAE flange 6000PSI for spiral hose; flange size is 3/4’’)
Sizes: Flange size is 3/4’’; long drop sizes according to customer’s demands
Type: 90 degrees elbow; 45 degrees elbow
Material: 45 carbon steel; stainless steel
Stock: standard size products(showed on technical data) are mostly kept as stock products
Sample: less than 5 pieces is free of charge
-

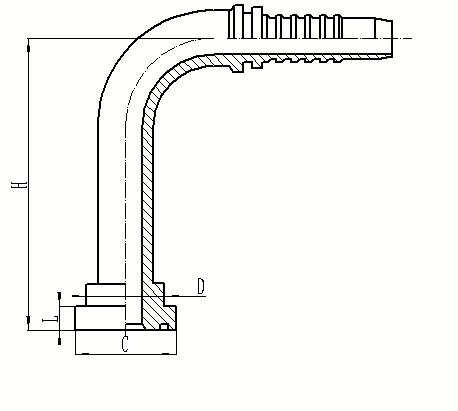

Drawing
Technical Data Table
PART NO.
FLANGE SIZE
HOSE BORE
DIMENSIONS
DN
DASH
C
D
L
H
87692-12-12 H=100
3/4"
20
12
41.3
31.7
8.9
100
87692-12-12 H=120
3/4"
20
12
41.3
31.7
8.9
120
87692-12-12 H=140
3/4"
20
12
41.3
31.7
8.9
140
87692-12-12 H=170
3/4"
20
12
41.3
31.7
8.9
170
