  • Part no.: 16711(JIC Male 74 Degrees Cone)



    Material: Carbon steel; Stainless Steel; Brass; Monel



    Production standard: based on Winner standard(Eaton); Offer OEM and ODM; Samples design and drawings produce welcome



    Delivery: stock products delivered with 7 days; re-produced products according to the quantities, terms or special demands required



    Currency: RMB; USD; EURO; others available

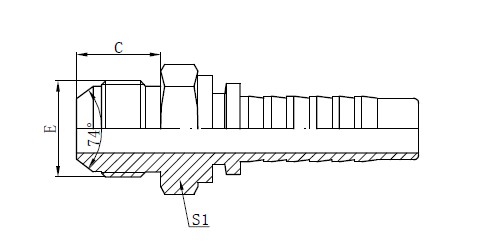

  • Drawing



    Technical Data Table

    代号

    PART NO.

    螺纹E

    THREAD E

    胶管 HOSE BORE

    尺  寸   DIMENSIONS

    公称内径DN

    标 号 DASH

    C

    S1

    16711-04-04

    7/16"X20

    6

    04

    14

    12

    16711-05-04

    1/2"X20

    6

    04

    14

    14

    16711-05-05

    1/2"X20

    8

    05

    14

    14

    16711-06-04

    9/16"X18

    6

    04

    14

    17

    16711-06-05

    9/16"X18

    8

    05

    14

    17

    16711-06-06

    9/16"X18

    10

    06

    14

    17

    16711-08-06

    3/4"X16

    10

    06

    16.7

    22

    16711-08-08

    3/4"X16

    12

    08

    16.7

    22

    16711-10-06

    7/8"X14

    10

    06

    19.5

    24

    16711-10-08

    7/8"X14

    12

    08

    19.5

    24

    16711-10-10

    7/8"X18

    16

    10

    19.5

    24

    16711-12-08

    1.1/16"X12

    12

    08

    22

    30

    16711-12-10

    1.1/16"X12

    16

    10

    22

    30

    16711-12-12

    1.1/16"X12

    20

    12

    22

    30

    16711-12-16

    1.1/16"X12

    25

    16

    22

    32

    16711-14-12

    1.3/16"X12

    20

    12

    22.5

    32

    16711-16-12

    1.5/16"X12

    20

    12

    23

    36

    16711-16-16

    1.5/16"X12

    25

    16

    12

    36

    16711-20-16

    1.5/8"X12

    25

    16

    24.5

    46

    16711-20-20

    1.5/8"X12

    32

    20

    24.5

    46

    16711-24-20

    1.7/8"X12

    32

    20

    27.5

    50

    16711-24-24

    1.7/8"X12

    40

    24

    27.5

    50

    16711-32-32

    2.1/2"X12

    50

    32

    34

    65
