JIC Female Fittings
Part no. 26711 is a kind of JIC female with 74 degrees cone seat. Our part no.s are in line with Winner(Eaton as well) standard. For other brands like Manuli or Parker, we can figure out with our items to quote prices. Hose Fittings are made from carbon steel #45 or stainless steel if required. And sizes showed on technical data table are regularly produced.
Click here to send e-mail!
-
Part no.:26711(JIC Female 74°Cone Seat)
OEM service: Part no.s of famous companies are available as well as drawings or samples
Samples: less than 5PCS is for free; samples are from stock products if available; re-produced samples needs plenty of time(charged)
Surface treatment: Trivalent silver zinc; Trivalent yellow zinc; Hexavalent yellow zinc; Chrome plated; Electric-polish, etc.
-

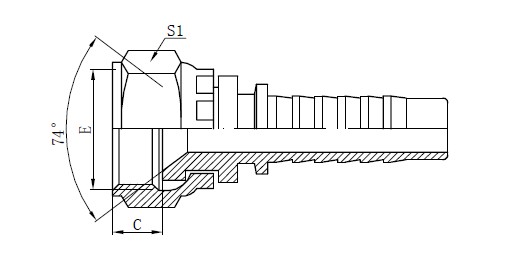

Drawing
Technical Data Table
代号
PART NO.
螺纹E
THREAD E
胶管 HOSE BORE
尺 寸 DIMENSIONS
公称内径DN
标 号 DASH
C
S1
26711-04-04
7/16"X20
6
04
8.5
17
26711-05-04
1/2"X20
6
04
9.5
19
26711-05-05
1/2"X20
8
05
9.5
19
26711-06-04
9/16"X18
6
04
10
19
26711-06-05
9/16"X18
8
05
10
19
26711-06-06
9/16"X18
10
06
10
19
26711-08-06
3/4"X16
10
06
11
24
26711-08-08
3/4"X16
12
08
11
24
26711-08-10
3/4"X16
16
10
11
24
26711-10-06
7/8"X14
10
06
11
27
26711-10-08
7/8"X18
12
08
11
27
26711-10-10
7/8"X18
16
10
11
27
26711-10-12
7/8"X18
20
12
11
27
26711-12-08
1.1/16"X12
12
08
13.5
32
26711-12-10
1.1/16"X12
16
10
13.5
32
26711-12-12
1.1/16"X12
20
12
13.5
32
26711-12-16
1.1/16"X12
25
16
13.5
32
26711-14-12
1.3/16"X12
20
12
14.5
36
26711-16-12
1.5/16"X12
20
12
14.5
41
26711-16-14
1.5/16"X12
22
14
14.5
41
26711-16-16
1.5/16"X12
25
16
14.5
41
26711-16-20
1.5/16"X12
32
20
14.5
41
26711-20-16
1.5/8"X12
25
16
15.5
50
26711-20-20
1.5/8"X12
32
20
15.5
50
26711-24-20
1.7/8"X12
32
20
18.5
55
26711-24-24
1.7/8"X12
40
24
18.5
55
26711-32-32
2.1/2"X12
50
32
24.5
75
