JIC Female Elbow Fittings
26791 fittings are 90 degrees JIC female 74 degrees cone seat threads. Complete sizes from 1/4’’ to 2’’ are covered in our production. All hydraulic fittings are manufactured from 45 carbon steel and stainless steel. Except forgings which are made from carbon steel 20. Our fittings are zinc plated and chrome plated mostly. But we can meet customers’ special demands.
Click here to send e-mail!
-
Part no.: 26791(90°JIC Female 74°Cone Seat)
Assembly performs extremely well even under severe vibration and thermal shocks
Fittings can be equally coupled to metric or fractional tubes
This system leak free integrity remains after disassembly and reassembly
Other related products: 26798-R5(reusable fitting); 26711(straight type); 26792(special for spiral hose); 26791one piece(integral fitting with ferrule)
-

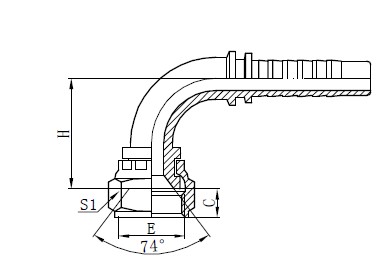

Drawing
Technical Data Table
代号
PART NO.
螺纹E
THREAD E
胶管 HOSE BORE
尺 寸 DIMENSIONS
公称内径DN
标 号 DASH
C
S1
H
26791-04-04
7/16"X20
6
04
8.5
17
30
26791-05-04
1/2"X20
6
04
9.5
19
31.5
26791-05-05
1/2"X20
8
05
9.5
19
34.5
26791-06-04
9/16"X18
6
04
10
19
31.5
26791-06-05
9/16"X18
8
05
10
19
34.3
26791-06-06
9/16"X18
10
06
10
19
36
26791-08-06
3/4"X16
10
06
11
24
38.4
26791-08-08
3/4"X16
12
08
11
24
44.5
26791-10-06
7/8"X14
10
06
11
27
39.9
26791-10-08
7/8"X18
12
08
11
27
45
26791-10-10
7/8"X18
16
10
11
27
50
26791-12-08
1.1/16"X12
12
08
13.5
32
46
26791-12-10
1.1/16"X12
16
10
13.5
32
51.5
26791-12-12
1.1/16"X12
20
12
13.5
32
57.6
26791-14-12
1.3/16"X12
20
12
14.5
36
58
26791-16-12
1.5/16"X12
20
12
14.5
41
59.5
26791-16-14
1.5/16"X12
22
14
14.5
41
62
26791-16-16
1.5/16"X12
25
16
14.5
41
71.6
26791-20-16
1.5/8"X12
25
16
15.5
50
73
26791-20-20
1.5/8"X12
32
20
15.5
50
82
26791-24-20
1.7/8"X12
32
20
18.5
55
82
26791-24-24
1.7/8"X12
40
24
18.5
55
93.4
26791-32-32
2.1/2"X12
50
32
24.5
75
118.9
