  • Part no.: 26711D( JIC Female 74 Degrees Cone Seat With Double Hexagon)



    Application: used for extremely high pressure hoses in fluid power machinery



    Type: a 37- degree flare seating surface with an additional hexagon.



    Stock: available for most sizes



    OEM service: YH can provide OEM service to customers with drawings or samples presented; products designing to customers’ special demands.

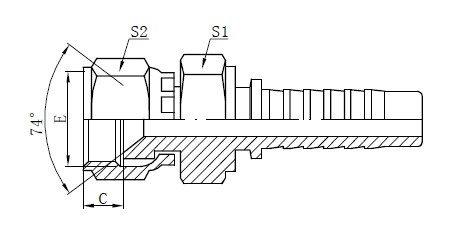

  • Drawing



    Technical Data

    代号

    PART NO.

    螺纹E

    THREAD E

    胶管 HOSE BORE

    尺  寸   DIMENSIONS

    公称内径DN

    标 号 DASH

    C

    S1

    S2

    26711D-04-04

    7/16"X20

    6

    04

    8.5

    17

    17

    26711D-05-04

    1/2"X20

    6

    04

    9.5

    19

    19

    26711D-05-05

    1/2"X20

    8

    05

    9.5

    19

    19

    26711D-06-05

    9/16"X18

    8

    05

    10

    19

    19

    26711D-06-06

    9/16"X18

    10

    06

    10

    19

    19

    26711D-08-06

    3/4"X16

    10

    06

    11

    24

    24

    26711D-08-08

    3/4"X16

    12

    08

    11

    24

    24

    26711D-10-10

     7/8"X14

    16

    10

    11

    27

    27

    26711D-12-12

    1.1/16"X12

    20

    12

    13.5

    32

    32

    26711D-16-16

    1.5/16"X12

    25

    16

    14.5

    41

    41

    26711D-20-20

    1.5/8"X12

    32

    20

    15.5

    50

    50

    26711D-24-24

    1.7/8"X12

    40

    24

    18.5

    55

    55

    26711D-32-32

    2.1/2"X12

    50

    32

    24.5

    70

    70
