Interlock Strengthen Fittings
Click here to send e-mail!
-
Part no.: 87613L(SAE Flange 6000PSI For Interlock Strengthen)
Process: steps from material cutting to packing are finished in YH factory.

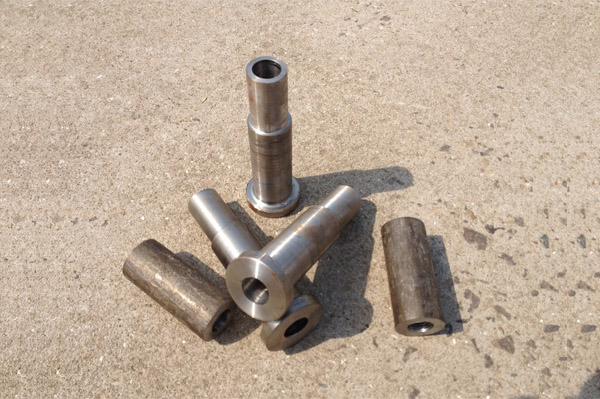

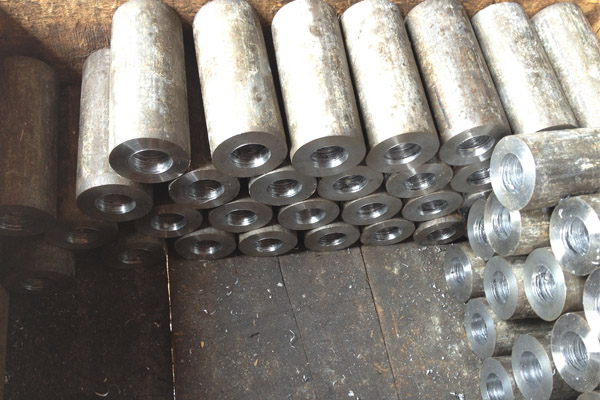

Advantages: factory price; controlled quality; instant serviceRaw material punched
CNC machines manufactured

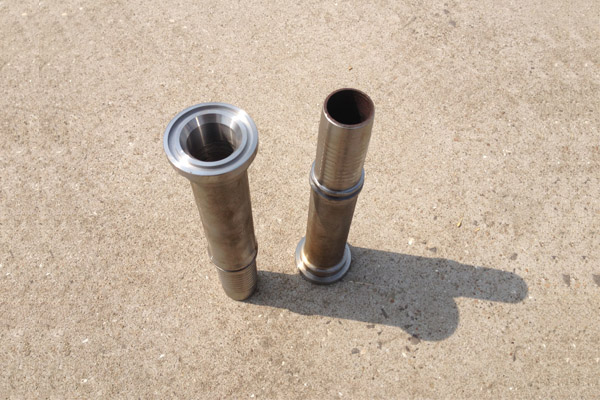

Semi-finished flange fittings
-

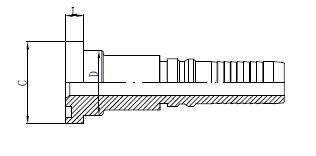

Drawing
Technical Data Table
代号
PART NO.
法兰尺寸
FLANGE SIZE
胶管 HOSE BORE
尺 寸 DIMENSIONS
公称内径DN
标 号 DASH
C
D
L
87613L-20-20
1.1/4"
32
20
54
43.6
10.4
87613L-24-24
1.1/2"
40
24
63.5
50.8
12.7
87613L-32-32
2"
50
32
79.4
66.5
12.7
