  • Part no.: YH-4SH-87312(Hose: DIN EN856 4SH; Fitting: SAE Flange 3000PSI For Spiral Hose)


    Ferrule type: 00400 ferrule(ferrule for four wire steel braided hose)


    Application: high pressure hydraulic application including mobile, machine tool and agricultural application, using petroleum or water based hydraulic fluids.


    Suitable Temp.: -40℃ to +100℃(Max: +120℃)


    Delivery time: less than 10 days for one order

  • Hose Technical Data

    名义直径

    Nominal

    Diameter

    内径

    Inside  diameter mm

    钢丝层直径

    Reinforcement

    Diameter mm

    外径

    Outside diameter mm

    工作压力working pressure MPa

    试验压力

    Proof pressure

    MPa

    爆破压力burst pressure

    MPa

    最小弯曲

    Min. bend

    Radius

    mm

    Min

    Max

    Min

    Max

    Min

    Max

    Min

    Max

    Max

    Min

    19

    3/4

    18.6

    19.8

    27.6

    29.2

    31.4

    33.0

    42.0

    84.0

    168.0

    280

    25

    1

    25.0

    26.4

    34.4

    36.0

    37.5

    39.9

    38.0

    76.0

    152.0

    340

    31

    1.1/4

    31.4

    33.0

    40.9

    42.9

    43.9

    47.1

    32.5

    65.0

    130.0

    460

    38

    1.1/2

    37.7

    39.3

    47.8

    49.8

    51.9

    55.1

    29.0

    58.0

    116.0

    560

    51

    2

    50.4

    52.0

    62.2

    64.2

    66.5

    69.7

    25.0

    50.0

    100.0

    700

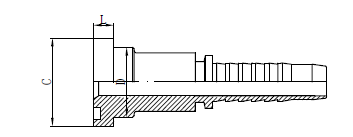

    Fitting Drawing



    Fitting Technical Data

    代号

    PART NO.

    法兰尺寸

    FLANGE SIZE

    胶管 HOSE BORE

    尺  寸   DIMENSIONS

    公称内径DN

    标 号 DASH

    C

    D

    L

    87312-08-08

    1/2"

    12

    08

    30.2

    23.9

    7

    87312-12-12

    3/4"

    20

    12

    38.1

    31.7

    7

    87312-16-16

    1"

    25

    16

    44.4

    38

    8.2

    87312-20-20

    1.1/4"

    32

    20

    50.8

    43.2

    8.2

    87312-24-24

    1.1/2"

    40

    24

    60.3

    50.3

    8.2

    87312-32-32

    2"

    50

    32

    71.4

    62.2

    9.8
