  • Part no.: 87942(45°SAE Flange 9000PSI For Spiral Hose)


    Sizes: from 1/2’’ to 2’’ are standard produced in our factory. 1/4’’, 3/8’’ and 3’’ are also available for quoting and manufacture.


    Prices: different from quantities, delivery terms, sizes, etc.


    Coating: yellow zinc plated, white zinc plated, nickel plated, chrome plated, etc.


    Delivery time: less than 20 days.

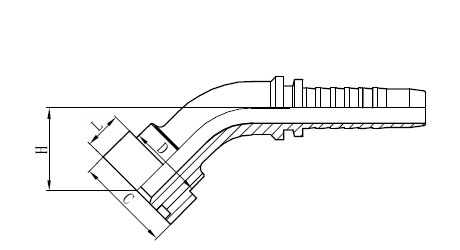

  • Drawing



    Technical Data Table

    代号

    PART NO.

    法兰尺寸

    FLANGE SIZE

    胶管 HOSE BORE

    尺  寸   DIMENSIONS

    公称内径DN

    标 号 DASH

    C

    D

    L

    H

    87942-08-08

    1/2"

    12

    08

    31.8

    23.9

    14.3

    30.5

    87942-12-12

    3/4"

    20

    12

    41.3

    31.7

    14.3

    35.6

    87942-16-16

    1"

    25

    16

    47.6

    38

    14.3

    37.5

    87942-20-20

    1.1/4"

    32

    20

    54

    43.6

    14.3

    42.3

    87942-24-24

    1.1/2"

    40

    24

    63.5

    50.8

    14.3

    46.9

    87942-32-32

    2"

    50

    32

    79.4

    66.5

    14.3

    61.5
