  • Part no.: 22691(90°BSP Female 60°Cone)


    Material: Carbon steel(#20;#45); Stainless steel(SS304; SS316); Brass


    Coating: Zinc-plated; Chrome plated(Cr6 is not allowed to coat on fittings)


    Sizes: Standard sizes showed on technical data table. Or sizes designed by customers


    Shipping: orders finished with 10 days for popular delivery terms

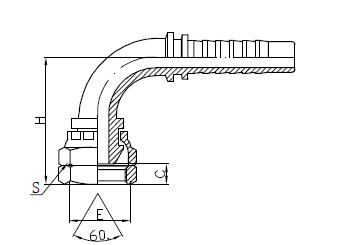

  • Drawing



    Technical Data Table

       代号

    PART NO.

    螺纹E

    THREAD E

    胶管 HOSE BORE

    尺  寸   DIMENSIONS

    公称内径DN

    标 号 DASH

    C

    S

    H

    22691-04-04

    G1/4"X19

    6

    04

    5.5

    19

    36.5

    22691-06-06

    G3/8"X19

    10

    06

    6.5

    22

    43

    22691-08-08

    G1/2"X14

    12

    08

    8

    27

    51

    22691-10-10

    G5/8"X14

    16

    10

    10.5

    30

    56

    22691-12-12

    G3/4"X14

    20

    12

    11.5

    32

    66

    22691-16-16

    G1"X11

    25

    16

    11.5

    41

    73.8

    22691-20-20

    G1.1/4"X11

    32

    20

    12

    50

    87

    22691-24-24

    G1.1/2"X11

    40

    24

    13

    55

    102

    22691-32-32

    G2"X11

    50

    32

    16

    70

    125.3
