BSP Double Hex Coupling
22612D is with thread type of BSP female 60 degrees cone with double hexagon for spiral hose. Sizes from 1/4’’ to 2’’ are produced in YH Hydraulic frequently. Hydraulic fittings are used in hose assemblies to transport oil or water so that’s why high precision and high pressure resistant are required to keep from leaking. And YH can ensure good quality produced.
Click here to send e-mail!
-
Part no.: 22612D(BSP female 60 degrees cone with double hexagon for spiral hose)
Related products: 22611D(not for spiral hose); 22612(Single nut); 22692(90 degrees elbow); 22642(45 degrees elbow)—above products can be found in YH Hydraulic
Shipping term: FOB(Ningbo; Shanghai; Guangzhou); CIF or CFR(customer port); FCA(mentioned place)
Package: cartons then boxes or pallets
Delivery time: according to items and quantities required(as fast as we can)
-

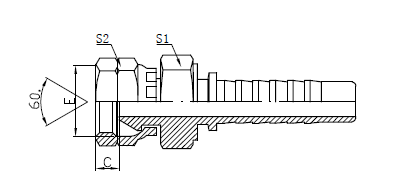

Drawing
Technical Data Table
代号
PART NO.
螺纹E
THREAD E
胶管 HOSE BORE
尺 寸 DIMENSIONS
公称内径DN
标 号 DASH
C
S1
S2
22612D-04-04
G1/4"X19
6
04
5.5
19
19
22612D-06-06
G3/8"X19
10
06
6.5
22
22
22612D-08-08
G1/2"X14
12
08
8
27
27
22612D-12-12
G3/4"X14
20
12
11.5
32
32
22612D-16-16
G1"X11
25
16
11.5
41
41
22612D-20-20
G1.1/4"X11
32
20
12
50
50
22612D-24-24
G1.1/2"X11
40
24
13
55
55
22612D-32-32
G2"X11
50
32
16
70
70
