Adjustable Stud Fittings
1DH4-OG adapter series are 45 degrees metric male 24 degrees heavy type adjustable stud. Mild steel is put into production to guarantee our high quality. And all machines are advanced in our factory that we can supply quality products. Also we can provide customers with special adapter fittings if drawings, samples or requirements are presented.
Click here to send e-mail!
-
Part no.: 1DH4-OG(45°Metric Male 24°Heavy Type Adjustable Stud)
Process: according to drawings, samples and accurate sizes
Machines and steps: precision CNC lathe, punch, friction press, milling machine forging, stamping, etc.
Feature: suitable for mechanism of high standard
Delivery: FOB(Ningbo) is the nearest port; less than 30 days for one order if most items require to produce
-

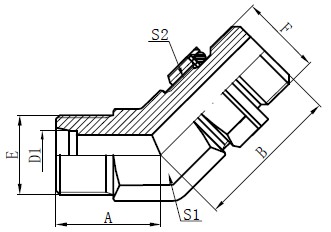

Drawing
Technical Data Table
代号
PART NO.
螺纹 THREAD
管子外径
尺寸 DIMENSIONS
E
F
TUBE O.D. D1
A
B
S1
S2
1DH4-14-12OG
M14X1.5
M12X1.5
6
22
30
14
17
1DH4-16-14OG
M16X1.5
M14X1.5
8
22
30.5
17
19
1DH4-18-16OG
M18X1.5
M16X1.5
10
24
34
19
22
1DH4-20-18OG
M20X1.5
M18X1.5
12
27
37
22
24
1DH4-24-22OG
M24X1.5
M22X1.5
16
33
40
27
27
1DH4-30-27OG
M30X2
M27X2
20
33
48
27
32
1DH4-36-33OG
M36X2
M33X2
25
37
49.5
33
41
1DH4-42-42OG
M42X2
M42X2
30
40
54
44
50
备注：如需带卡套及卡套螺母整套订货，请在代号后加“RN”，如“1DH4-24-22OG/RN”
Remark: In case if you are interested to order the adapter in complete set with cutting ring and nut, it is necessary to insert suffix”RN”to our part no. For example: 1DH4-24-22OG/RN.
